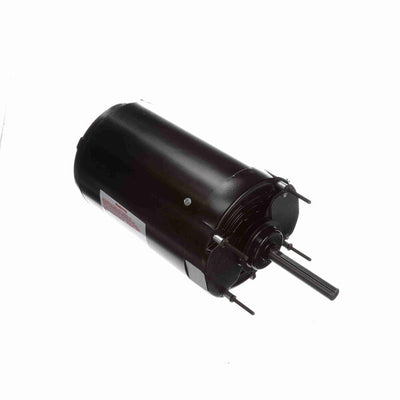

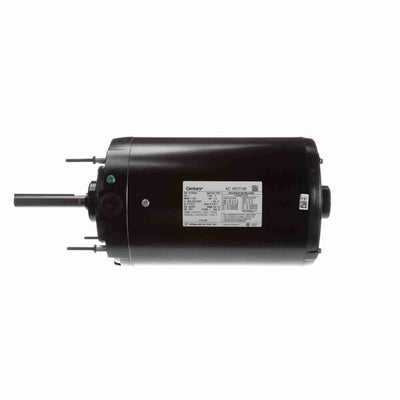

Century Condenser Fan Motor, 1140 RPM, 1 HP, 200-230/460 V, 56Y Frame, Totally Enclosed Air Over
- Double sealed ball bearings
- Automatic reset thermal protector
- Quick-connect design
- Reversible
- 3 Phase
$879.90 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674021724 |
| Output HP | 1 Hp |
| Frequency | 60/50 Hz |
| Current | 5.7/2.9 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 56Y |
| Thermal Protection | Automatic |
| UL | No |
| Voltage | 200-230/460 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | B |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Polyphase |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 8.17 in |
| Shaft Extension | 4.10 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 15.42 in |
| Shaft Diameter | 0.625 in |
