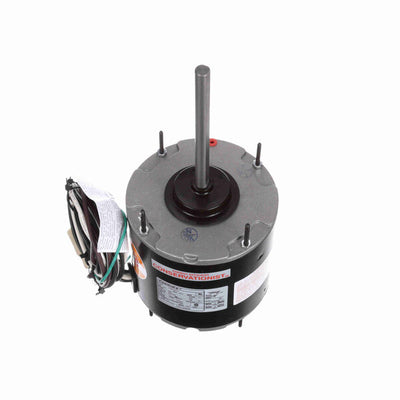

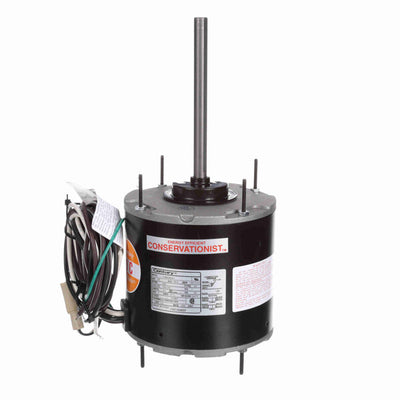

Century Condenser Fan Motor, 825 RPM, 1/3 HP, 200-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • Condenser Fan - Heat Pump - Refrigeration Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 36" Leads
  • Extended Studs Shaft End and Lead End
  • HM101-0015 replaces the following brands and item numbers: Carrier/Bryant and others

$275.00 USD

Title
Buy Now
SKU:
FSE1038SF
ID:
HM101-1S9-0015

PRODUCT INFO

Applications
Replaces motors in units by Carrier/Bryant and others

Features
70°C ambient Three year warranty UL and CSA approved Class F insulation achieves superior dielectric strength for long thermal life Single-speed Sleeve or ball bearing Large high-temperature nylon glass-filled shaft slinger for bearing protection; keeps water and dirt out of motor bearings|36” color coded high temperature leads for easy identification and installation Easy to remove drain plugs in both end frames allow accumulated condensation to be expelled quickly

SPECIFICATIONS

Nameplate Specifications
UPC786674021502
Output HP1/3 Hp
Frequency60 Hz
Current2.1 A
Service Factor1
DutyAir Over
Frame48
Thermal ProtectionAutomatic
ULRecognized
Voltage200-230 V
Speed825 rpm
Phase1
Insulation ClassF
EnclosureTotally Enclosed
Ambient Temperature70 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles8
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeDouble Flat
Frame Length4.50 in
Shaft Extension6.5 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.49in
Shaft Diameter0.500 in
