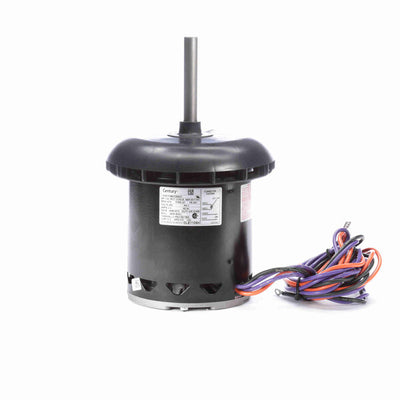

Century OEM Replacement Motor, 1075 RPM, 1 HP, 460 V, 48 Frame, Semi Enclosed
Century OEM Replacement Motor, 1075 RPM, 1 HP, 460 V, 48 Frame, Semi Enclosed
Availability:
In-Stock
- OEM Direct Replacement Motor
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Open Shaft End and Lead End End-Frame, Semi-Enclosed, Air Over
- Ball Bearing
- 5/8" Diameter Shaft with Flat
- 68" Leads with Female Spade Terminals, 77" Leads with #10 Eyelet
- Belly Band Mount, Vertical Shaft Up
- HM102-0047 replaces the following brands and item numbers: Lennox #88C730
$798.00 USD
PRODUCT INFO
Features
Single-speed, 60hz, single-phase. Ball bearings; open air-over construction. Automatic thermal protection; Class B insulation. OLE1106H has maximum operating ambient of 60°C. Belly-band or basket mount. Drip shield included. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674027917 |
| Output HP | 1 Hp |
| Frequency | 60 Hz |
| Current | 2.9 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y (5.6" Diameter) |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round Belly Band |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 5.88 in |
| Shaft Extension | 3.63 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 11.49 in |
| Shaft Diameter | 0.625 in |
MANUALS
