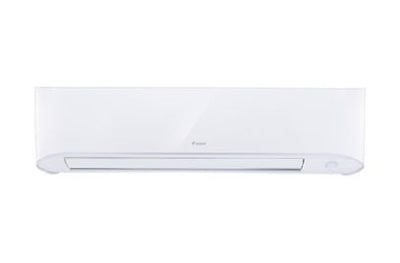

Daikin FTKB12AXVJU 12,000 BTU Wall-Mounted Indoor Unit
Daikin FTKB12AXVJU 12,000 BTU wall-mounted indoor unit is an indoor ductless component for a matched Daikin single-zone cooling system.
Product highlights
- 12,000 BTU nominal capacity class
- Wall-mounted indoor unit
- Single-zone ductless cooling application
- Daikin model FTKB12AXVJU
Ordering details
- Brand: Daikin
- Model / SKU: FTKB12AXVJU
- Product type: Indoor Air Handler
Compatibility note: This is an indoor component, not a complete system. Confirm the matched outdoor unit, controls, piping, voltage, and installation requirements before ordering.
$270.00 USD
SKU:
FTKB12AXVJU
ID:
HE103-2076
PRODUCT INFO
- Inverter variable speed compressor
- Automatic operation for year round comfort
- Vertical auto swing air movement
- Humidity control
- Auto fan speed
- Remote controller with backlit display
- 24 hour on / off timer
- Auto restart after power failure
- Self diagnosis with digital display
- 208/230V
This product requires a compatible Daikin outdoor condenser and the following accessories for installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
SPECIFICATIONS
| General Information | |
| Type | Wall Mounted |
| Product Line | 17-Series |
| Operating Mode | Cooling Only |
| Multi-Zone Compatible | No |
| Refrigerant Type | R-410A |
| Remote Control | Wireless |
| Indoor Unit Size(s) | 12 |
| Installation Location | Indoor |
| Performance | |
| Cooling BTU | 12000 |
| Cooling Capacity | 12000 BTU |
| Maximum Air Flow | 360 CFM |
| Minimum Air Flow | 232 CFM |
| Minimum Sound Level | 32 dB |
| Maximum Sound Level | 42 dB |
| Dimensions | |
| Gas Connection Size | 3/8 Inch |
| Liquid Connection Size | 1/4 Inch |
| Condensate Drain Size | 3/4 Inch |
| Product Height | 11 11/16 Inches |
| Product Width | 35 1/16 Inches |
| Product Depth | 8 1/4 Inches |
| Product Weight | 20 Pounds |
| Certifications | |
| AHRI Certified | Yes |
