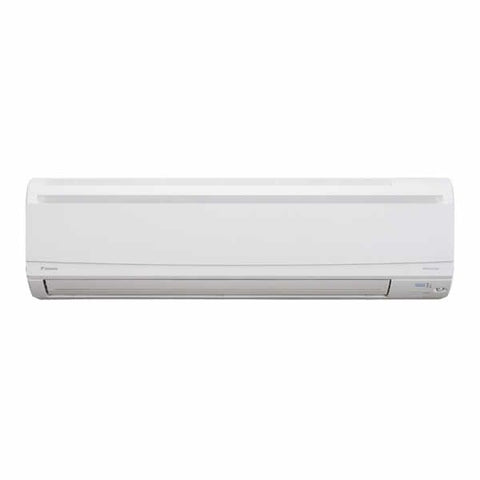

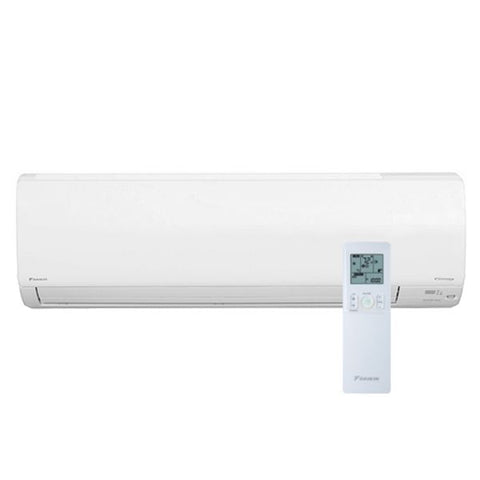

Daikin 12,000 BTU Wall Mounted Air Handler; Single Zone (Heat Pump)


This product requires a compatible outdoor condenser for functionality.
Style: Wall Mounted; BtuH Cooling: 10,900; BtuH Heating: 13,500; Volts: 208/230; Sound Pressure Cooling dBA: 45; Sound Pressure Heating dBA: 45; Liquid Conn.: 1/4"; Suction Fitting: 3/8"; Width: 30-5/16"; Height: 11-1/4"; Depth: 8-3/4"; Wt. Lbs.: 18; Wifi Enabled: N; Nom. Capacity: 12000;


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


  • Inverter variable speed compressor
  • Automatic operation for year round comfort
  • Vertical auto swing air movement
  • Humidity control
  • Auto fan speed

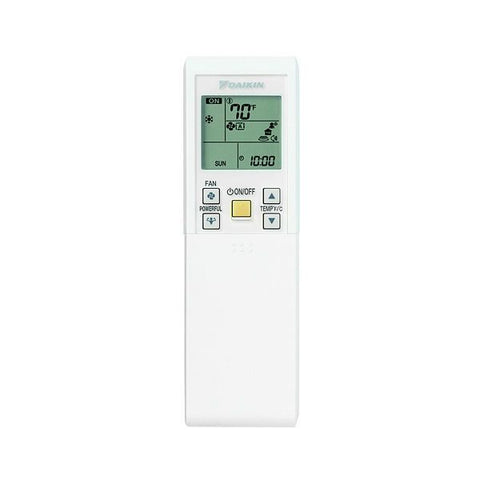

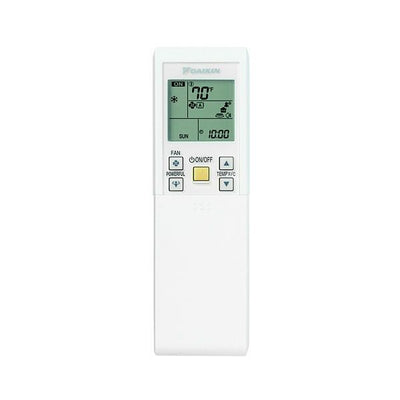

  • Remote controller with backlit display
  • 24 hour on / off timer
  • Auto restart after power failure
  • Self diagnosis with digital display
  • 208/230V

  This product requires a compatible Daikin outdoor condenser and the following accessories for installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.


General Information
TypeWall Mounted
Product Line19-Series
Operating ModeHeating and Cooling
Multi-Zone CompatibleNo
Refrigerant TypeR-410A
Remote ControlWireless
Indoor Unit Size(s) 12
Installation LocationIndoor


Cooling BTU 12000
Cooling Capacity12000 BTU
Moisture Removal4 Pints/Hour
Maximum Air Flow434 CFM
Minimum Air Flow145 CFM
Minimum Sound Level19 dB
Maximum Sound Level 45 dB

Gas Connection Size3/8 Inch
Liquid Connection Size1/4 Inch
Condensate Drain Size5/8 Inch
Product Height11 1/4 Inches
Product Width30 1/3 Inches
Product Depth8 3/4 Inches
Product Weight18 Pounds


AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
