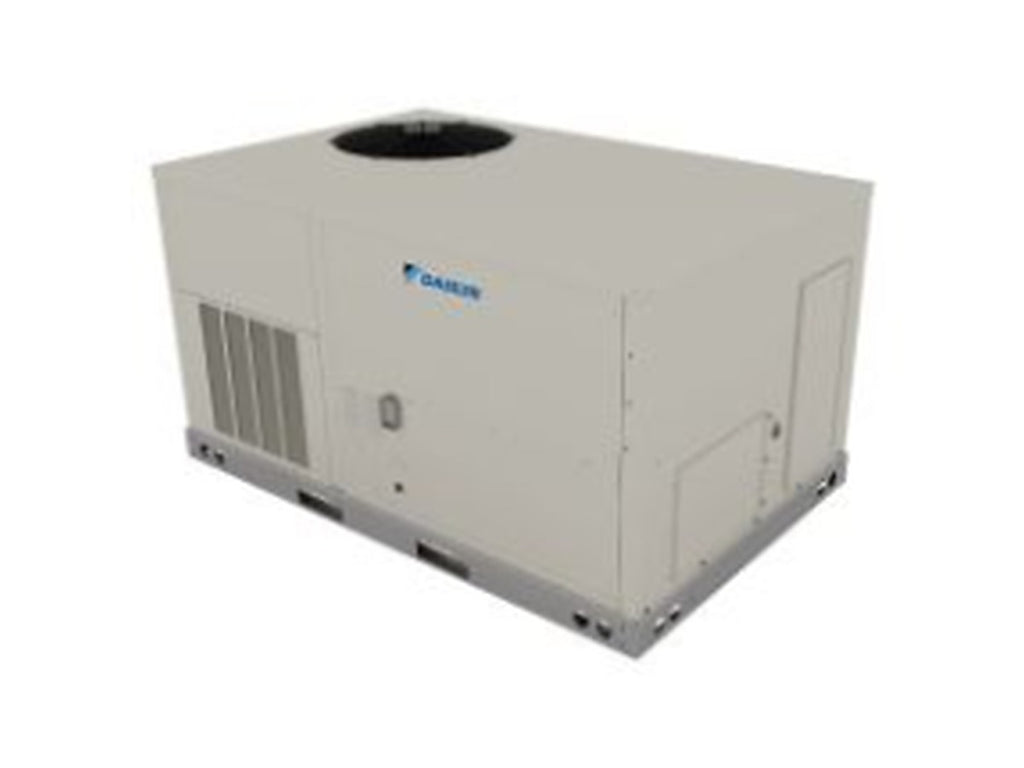

Daikin 3 Ton 14 SEER2 R-32 45,000 Btu Commercial Gas Package Air Conditioner- DSG0361DL00001S
Product Overview:
The Daikin DSG0361DL00001S is a 3‑ton (≈35,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground‑mounted installations in small to medium commercial spaces like offices, clinics, and retail buildings. It combines electric cooling with an 81 % AFUE gas furnace for dependable year‑round comfort and efficient operation. Built with R‑32 refrigerant and a single‑stage scroll compressor, it delivers reliable performance with lower operating costs and simplified serviceability. The rugged galvanized steel cabinet and direct‑drive fan system provide durability and ease of maintenance.
Quick Facts:
- Model: DSG0361DL00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~35,000 BTU (~3 tons)
- Heating Capacity: ~45,000 BTU/hr (gas furnace)
- Compressor: Single‑stage scroll
- Refrigerant: R‑32 (environmentally friendlier)
- Cooling Efficiency: ~14 SEER2 / ~12 EER2
- Heating Efficiency: ~81 % AFUE
- Voltage/Phase: 208–230 V/ Single‑phase
- Airflow: ~1,160 CFM nominal
- Fan Type: Direct‑drive condenser and blower fans
- Cabinet: Heavy‑gauge galvanized steel with powder‑coat finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 48‑5⁄16″ D × 39‑7⁄8″ H
- Weight: ~500 – 600 lbs (approx.)
$4,615.00 USD
SKU:
DSG0361DL00001S
ID:
HE101-2227
PRODUCT INFO
Standard Features:
- High-performance, low-noise scroll compressors (single-stage 3–5 ton, 2-stage 6 ton) with vibration isolation
- Refrigeration circuit with high/low pressure safety switches
- Factory-charged R-32 refrigerant
- Direct-drive SWSI supply fan with aluminum blades; dynamically balanced
- Ball-bearing EEM motors—no belts, thermal overload protected
- Electromechanical controls modulate supply fan motor
- Draw-through indoor coil for better dehumidification
- Copper/aluminum evaporator coils, factory pressure-tested
- Large face-area microchannel condenser coils for efficiency
- ETL-certified heating modules with Wrinkle Bend Technology
- Single-phase 5 ton: 81% AFUE; 3-phase: ≥81% thermal efficiency
- Tubular furnace with in-shot burners, induced draft fan, and safety switches
- Factory-wired 24 V controls, single-point power entry
- Standard draw-through filter section with off-the-shelf replaceable filters
Cabinet Features:
- Tool-less filter access for easy maintenance
- Fully insulated (foil-faced fiberglass) to prevent condensation and thermal loss
- 1" raised supply/return flanges
- Heavy-gauge galvanized steel base rails (≥3.5" tall, rigging/forklift ready)
- Flexible electrical entry via base or side knockout
SPECIFICATIONS
| Model Number(s) | DSG0361DL00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 3.0 Ton |
| Cooling Btu | 35,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 40 |
| Maximum CFM | 1,160 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 574 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190263889 |
