Daikin 7.5 Ton 16 IEER / 12 EER 180,000 Btu Commercial Gas Package Air Conditioner- DSG0903DM00001S
Product Overview

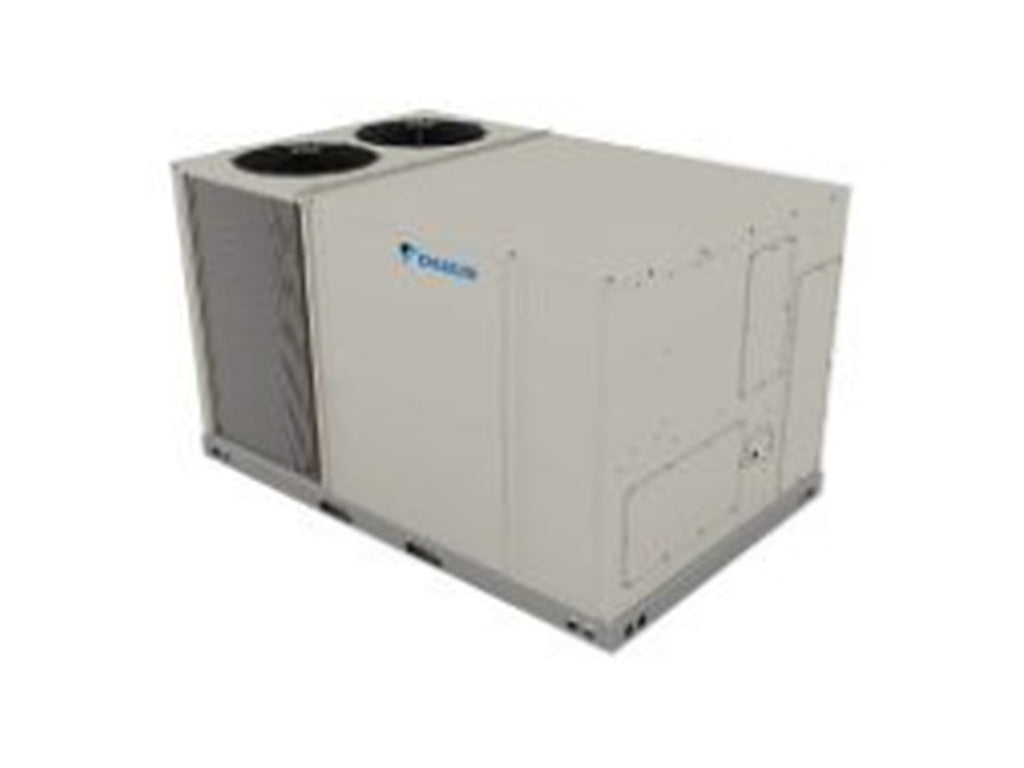

The Daikin DSG0903DM00001S is a 7.5‑ton light commercial packaged gas/electric rooftop HVAC unit designed for dependable year‑round heating and cooling in light commercial buildings. This self‑contained system combines efficient cooling with a robust integrated gas furnace and uses R‑32 low‑GWP refrigerant for environmentally friendlier performance. Built for easy rooftop installation, it features durable construction, direct‑drive components, and factory‑tested controls to deliver reliable operation, quiet performance, and easier commissioning.
Quick Facts
- Model: DSG0903DM00001S
- System Type: Packaged gas/electric rooftop HVAC unit
- Cooling Capacity: ~7.5 tons (~90,000 BTU/h)
- Heating Output: ~180,000 BTU (integrated gas furnace)
- Refrigerant: R‑32 (Low‑GWP)
- Efficiency: Approx. 12 EER, ~16 IEER (standard efficiency)
- Voltage/Phase: 208/230 V, 3‑phase
- Compressor: Scroll (single‑stage cooling)
- Design: Commercial rooftop packaged configuration with rugged construction
- Application: Light commercial heating and cooling for offices, retail, warehouses, and similar spaces
$8,850.00 USD
SKU:
DSG0903DM00001S
ID:
HE101-2249
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors (two single-stage for partial load) with vibration-isolated mounting and internal overload protection.
- Factory-charged with R‑32 refrigerant; high/low-pressure safety switches included.
- Direct-drive EEM indoor fan motors; slide-out forward curb fan; high-static drive options for airflow control.
- Factory-balanced fans; ball-bearing direct-drive motor; thermal overload protection; no belts or lubrication needed.
- Large face-area outdoor coils; copper/aluminum draw-through indoor coils; microchannel condenser coils for efficiency.
- ETL-certified heating modules with Wrinkle Bend Technology; 81% AFUE (single-phase 5 ton) / ≥81% Thermal Efficiency (3-phase).
- Tubular furnace with in-shot burners, induced draft fan, flame rollout and high-temp safety switches, airflow protection.
- Factory-wired 24V electromechanical controls; single-point power entry; terminal strips; draw-through filter section with standard filters.
Cabinet Features
- Tool-less filter access for easy maintenance.
- Fully insulated with foil-faced fiberglass to prevent sweating and thermal loss.
- 1-inch raised flanges on supply/return; heavy-gauge steel base rail (≥3.5”) with rigging/lifting holes.
- Electrical access via base or horizontal knockout for field installation.
SPECIFICATIONS
| Model Number(s) | DSG0903DM00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 7.5 Ton |
| Cooling Btu | 90,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Single |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 50 |
| Maximum CFM | 3,020 |
| Refrigerant Type | R-32 |
| Height (Inches) | 54 5/8 |
| Length (Inches) | 93 3/4 |
| Width (Inches) | 60 3/8 |
| Total Shipping Weight (lbs.) | 1,140 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264435 |
