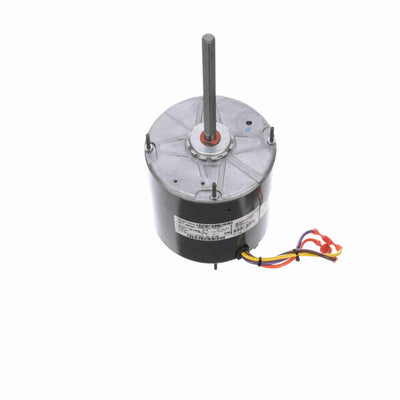

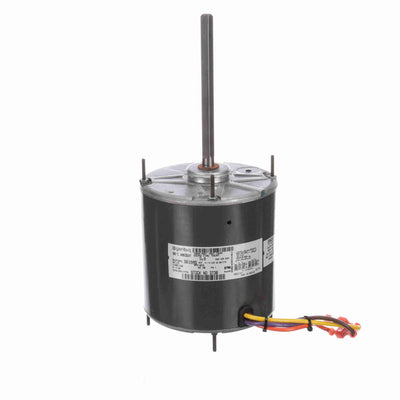

Genteq Condenser Fan Motor, 1075 RPM, 1/2 HP, 208-230V, 48 Frame, Totally Enclosed Air Over
- Condenser Fan - Heat Pump Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Extended Clampbolts, Belly Band
$210.00 USD
PRODUCT INFO
Applications
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with belly band or extended clamp mounting
Features
Automatic thermal protection. Extended thru-bolts, 3/4" long on SE end and 1/2" on OSE end Mounting holes in shell for capacitor bracket 1/2" diameter shaft 6" long with 2 full flats at 90° Electrically reversible
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585020035 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 3.50 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 5.07 in |
| Shaft Extension | 6.00 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.21 in |
| Shaft Diameter | 0.500 in |
