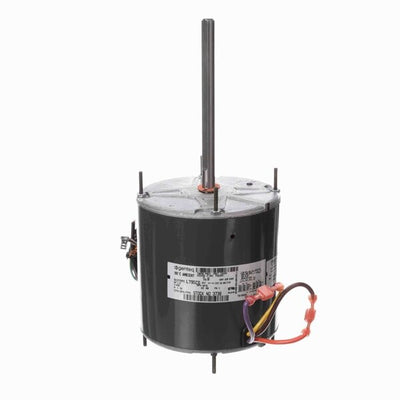

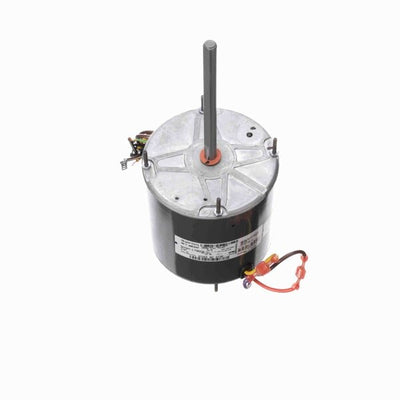

Genteq Condenser Fan Motor, 1075 RPM, 1/2 HP, 460V, 48 Frame, Totally Enclosed Air Over
- Condenser Fan - Heat Pump Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Extended Clampbolts, Belly Band
$225.00 USD
PRODUCT INFO
Applications
Designed for condenser fan and heat pump units requiring vertical shaft up of vertical shaft down positioning with belly band or extended clamp screw mounting.
Features
Automatic thermal protection. Class B insulation. All-angle mount. 3/4" extended thru-bolts both ends.
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585021094 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 1.70 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Output KW | 0.37 kW |
| Voltage | 460 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 5.07 in |
| Shaft Extension | 6.42 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.81 in |
| Shaft Diameter | 0.500 in |
