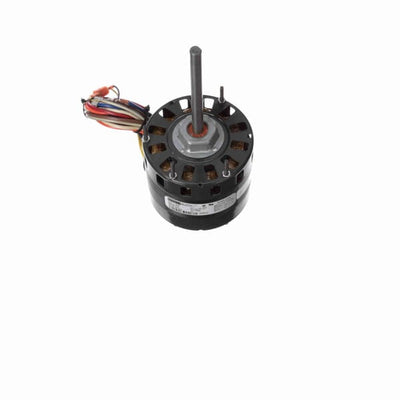

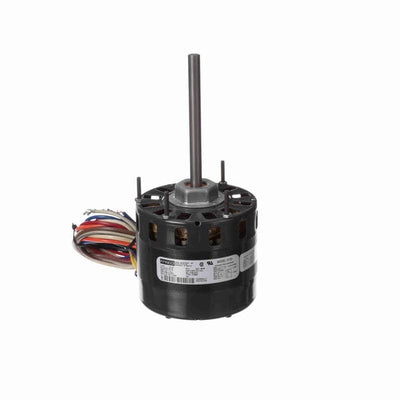

Fasco Direct Drive Motor, 1050 RPM, 1/4-1/5-1/6-1/8 HP, 277 V, 42 Frame, Open Air Over

Availability:
In-Stock
  • Direct Drive Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 30" Leads
  • Extended Studs Shaft End, Belly Band

$432.00 USD

Title
Buy Now
SKU:
D152
ID:
HM106-1S9-0104

PRODUCT INFO

Features
4-speed PSC motor, sleeve bearing |Rotation: electrically reversible. Extended hubs both ends, weighs 11 lbs.. Capacitor not included

SPECIFICATIONS

Nameplate Specifications
UPC815585028673
Output HP1/4-1/5-1/6-1/8 Hp
Frequency60 Hz
Current1.6/1.1/0.9/0.7 A
Service Factor1
DutyContinuous
Frame42
Thermal ProtectionAutomatic
ULRecognized
Voltage277 V
Speed1050 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length
10.97 in
Shaft Extension6.00 in
RotationReversible
Frame MaterialNa
Shaft Diameter0.500 in
