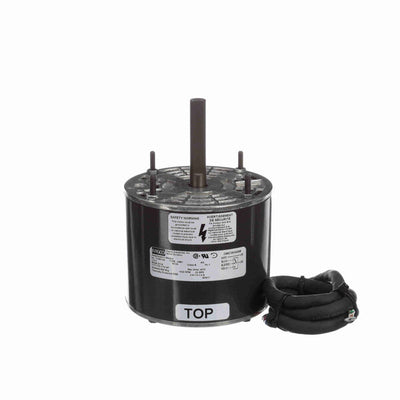

Fasco Direct Drive Motor, 1500 RPM, 1/11-1/25-1/70 HP, 115 V, 4.4" Diameter, Open Air Over

Availability:
In-Stock
  • General Purpose Motor
  • 4.4" Diameter
  • Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 30" Leads
  • Extended Studs Shaft End
  • HM106-0099 replaces the following brands and item numbers: Replacements for motors used on roof ventilators, may also be used on fan and blower applications where the motor is located in the air system

$238.00 USD

Title
Buy Now
SKU:
D119
ID:
HM106-1S9-0099

PRODUCT INFO

Applications
Replacements for motors used on roof ventilators, may also be used on fan and blower applications where the motor is located in the air system

Features
Thermally protected, 60 Hz. Shafts: flatted. Studs: four studs on 3.89" centers, shaft end, 1/2" long all motors

SPECIFICATIONS

Nameplate Specifications
UPC815585028123
Output HP1/11-1/25-1/70 Hp
Frequency60 Hz
Current2.9-1.5-1.0 A
Service Factor1
DutyAir Over
Frame4.4
Thermal ProtectionThermally Protected
ULRecognized
Voltage115 V
Speed1500 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles4
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length
3.38 in
Shaft Extension2.6 in
RotationCounterclockwise Shaft End
Frame MaterialRolled Steel
Overall Length
6.36 in
Shaft Diameter0.500 in
