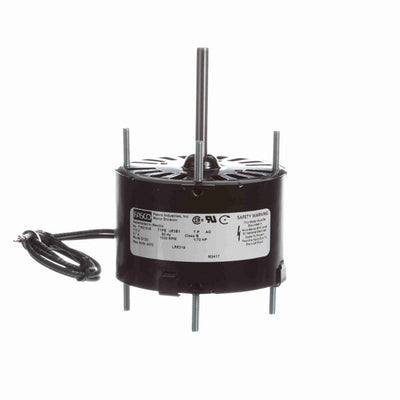

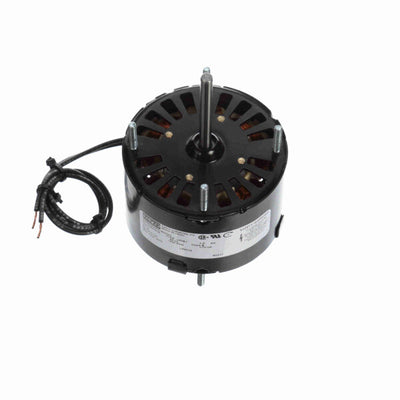

Fasco Direct Drive Motor, 1500 RPM, 1/70 HP, 115 V, 3.3" Diameter, Open Air Over
Fasco Direct Drive Motor, 1500 RPM, 1/70 HP, 115 V, 3.3" Diameter, Open Air Over
Availability:
In-Stock
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount
$101.00 USD
PRODUCT INFO
Applications
Electric wall and ceiling heaters, gas and oil heaters, range hood vents, fans, blowers, etc.
Features
Open ventilated enclosures, to be located in the airstream, thermally protected. Studs: four on 2.84" centers, both ends of motor
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028284 |
| Output HP | 1/70 Hp |
| Frequency | 60 Hz |
| Current | 0.70 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1500 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 1.95 in |
| Shaft Extension | 2.30 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 4.78 in |
| Shaft Diameter | 0.250 in |
