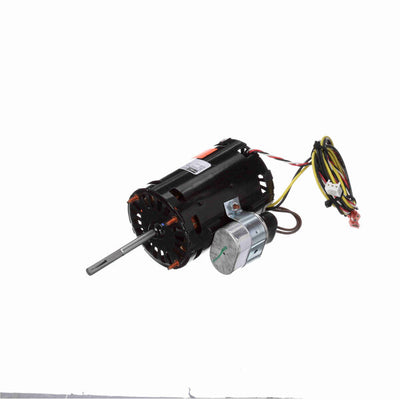

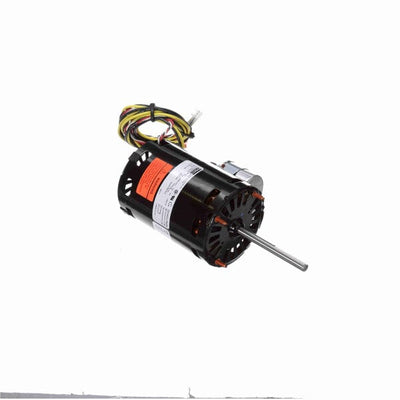

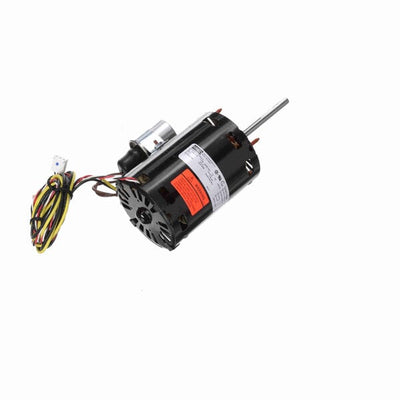

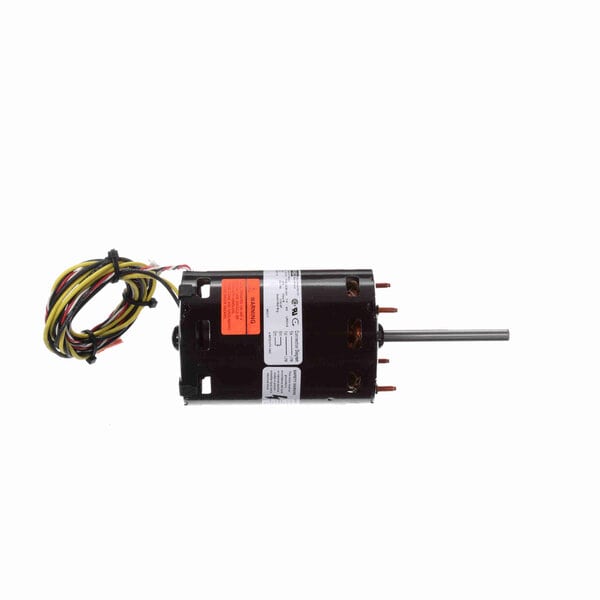

Fasco Draft Inducer Motor, 3450 RPM, 1/16 HP, 460 V, 3.3" Diameter, Semi Enclosed
- Draft Inducer Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame and Lead End End-Frame, Open Lead End Shell and Enclosed Shaft End Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Double Flat
- 56" Leads with Spade Terminals
- Extended Studs Shaft End
$362.00 USD
PRODUCT INFO
Features
All-angle mount. 24V pilot duty safety switch. Sleeve bearing (except as noted). 5/16" shaft adapter included. With centrifugal safety switch. Thermal overload protector. Self-cooling. Open ventilated
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028048 |
| Output HP | 1/16 Hp |
| Frequency | 60 Hz |
| Current | .3 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 3450 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 4.51 in |
| Shaft Extension | 3.35 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 8.10 in |
| Shaft Diameter | 0.312 in |
