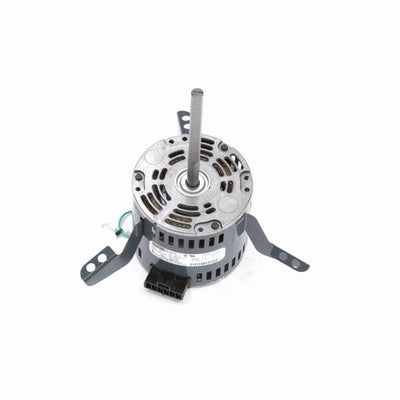

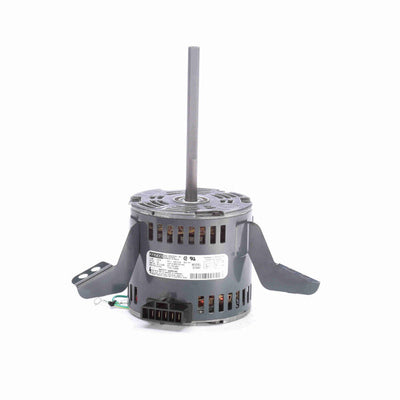

Fasco OEM Replacement Motor, 1075 RPM, 1/4 HP, 265 V, 42 Frame, Open Air Over

Availability:
In-Stock
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • Terminal Block
  • Flex Mount
  • HM102-0014 replaces the following brands and item numbers:I EC #5KCP29MK6021S, 5KCP29MK8386S, 705563-12

$227.00 USD

Title
Buy Now
SKU:
D1043
ID:
HM102-0014

SPECIFICATIONS

Nameplate Specifications
UPC815585027683
Output HP1/4 Hp
Frequency60 Hz
Current1.6 A
Service Factor1
DutyContinuous
Frame42
Thermal ProtectionAutomatic
ULRecognized
Voltage265 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingBracket
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length5.56 in
Shaft Extension6.25 in
RotationClockwise Shaft End
Frame MaterialRolled Steel
Overall Length10.87 in
Shaft Diameter0.500 in
