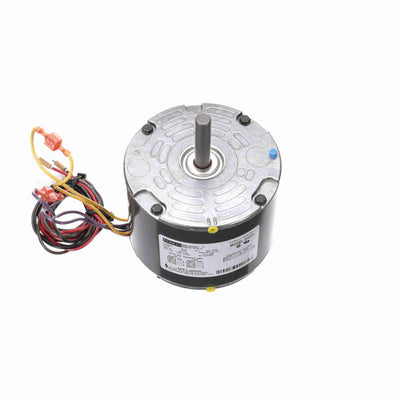

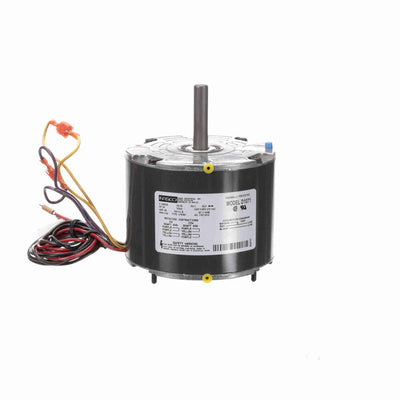

Fasco OEM Replacement Motor, 1100 RPM, 1/6 HP, 208/230 V, 42 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 42" Leads with Teminal Housing
  • Extended Studs Lead End, Belly Band Mount

$254.00 USD

Title
Buy Now
SKU:
D1071
ID:
HM102-1S9-0048

SPECIFICATIONS

Nameplate Specifications
UPC815585027898
Output HP1/6 Hp
Frequency60 Hz
Current0.99 A
Service Factor1
DutyContinuous
Frame42
Thermal ProtectionAutomatic
ULRecognized
Voltage208/230 V
Speed1100 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingBracket
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length3.38 in
Shaft Extension2.2 in
RotationReversible
Frame MaterialRolled Steel
Overall Length6.02 in
Shaft Diameter0.500 in
