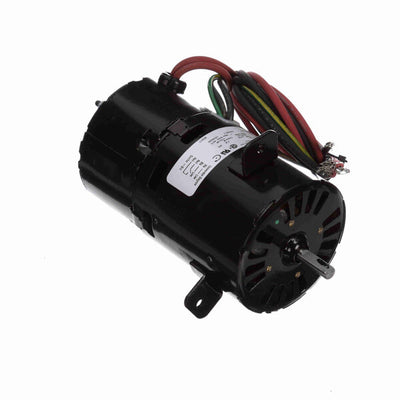

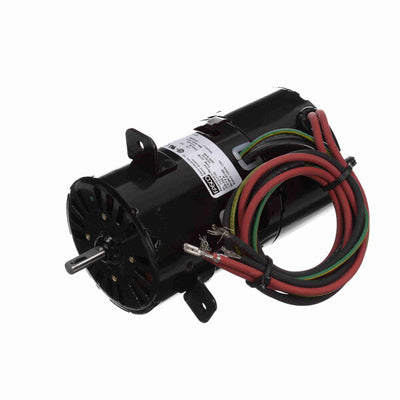

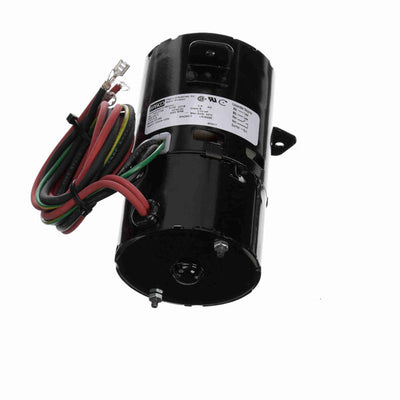

Fasco OEM Replacement Motor, 3000 RPM, 1/10 HP, 208/230 V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- Terminal Block
- Clamp Screw Opposite Shaft End, Belly Band Mount
- HM102-0071 replaces the following brands and item numbers: Shaded pole for the #7121-4066, a rooftop vent (draft booster) switch motor found in Singer and Comfort Maker gas furnaces.
$378.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508022284 |
| Output HP | 1/10 Hp |
| Frequency | 60 Hz |
| Current | 1.5/1.4 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 3000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 2 |
| Mounting | Lug |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.43 in |
| Shaft Extension | 1.1 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 6.99 in |
| Shaft Diameter | 0.313 in |
