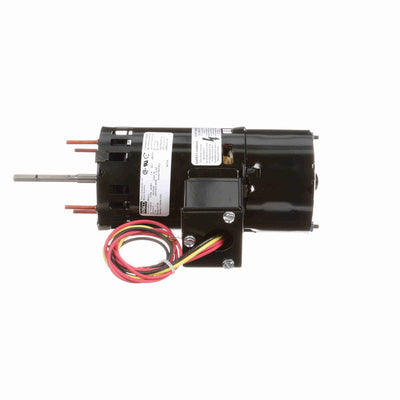

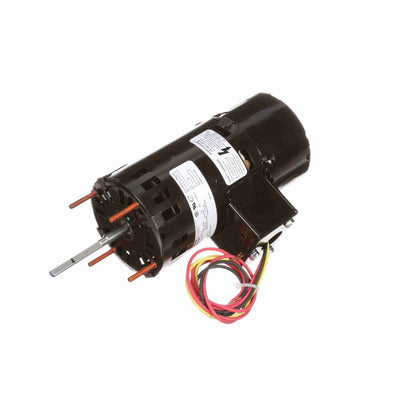

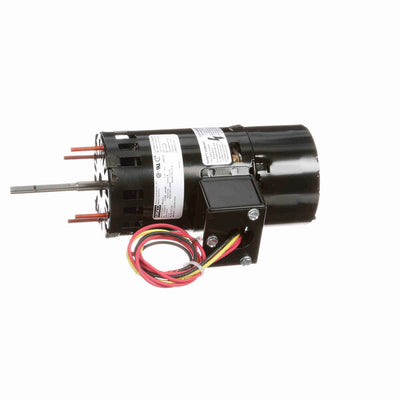

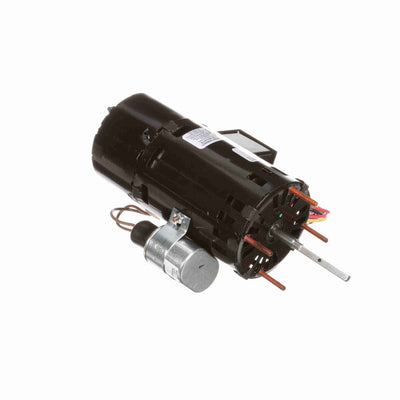

Fasco OEM Replacement Motor, 3450/2875 RPM, 1/15 HP, 208-230 V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
- Open Shaft End End-Frame and Shell, Enclosed Opposite Shaft End End-Frame, Air Over
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End
- HM102-0060 replaces the following brands and item numbers: Carrier CWSE motor #HC680001 and Fasco #7162-3829; PSC
$312.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027997 |
| Output HP | 1/15 Hp |
| Frequency | 60 Hz |
| Current | 0.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3" Diameter |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 3450/2875 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 4.39 in |
| Shaft Extension | 2.80 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Rolled Steel |
| Overall Length | 9.82 in |
| Shaft Diameter | 0.312 in |
