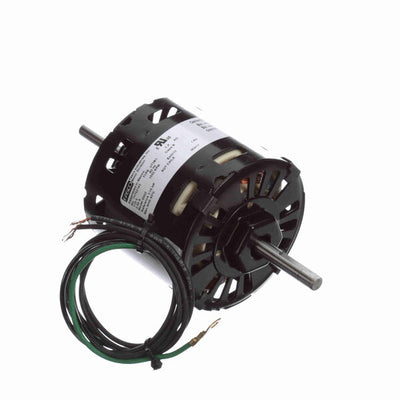

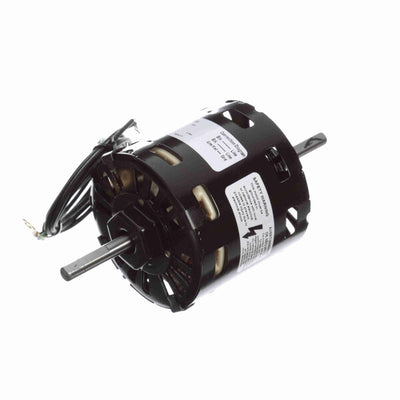

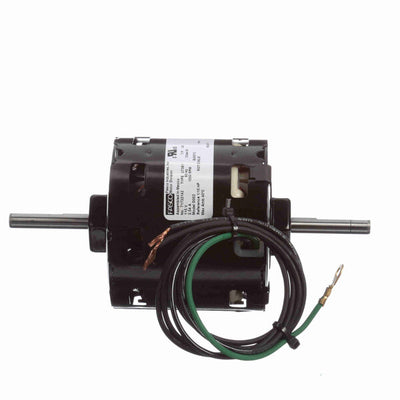

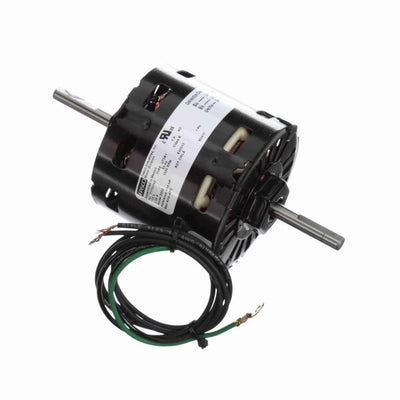

Fasco Window+Room Air Conditioniq, 1550 RPM, 1/15 HP, 115 V, 3.3" Diameter, Open Air Over

Availability:
In-Stock
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Double Shaft with Flat
  • 23" Leads

$286.00 USD

Title
Buy Now
SKU:
D002
ID:
HM105-1S9-0040

PRODUCT INFO

Applications
Double blower, room air conditioning, heaters |OEM replacements for Thermador and more

Features
Continuous duty. Thermally protected

SPECIFICATIONS

Nameplate Specifications
UPC815585027119
Output HP1/15 Hp
Frequency60 Hz
Current2.54 A
Service Factor1
DutyAir Over
Frame3.3
Thermal ProtectionThermally Protected
ULRecognized
Voltage115 V
Speed1550 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAN
Technical Specifications

Electrical TypeShaded Pole
Poles4
MountingHexagonal Hubs
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
2.82 in
Shaft Extension8.50 in
RotationClockwise Lead End
Frame MaterialNa
Overall Length6.92 in
Shaft Diameter0.313 in
