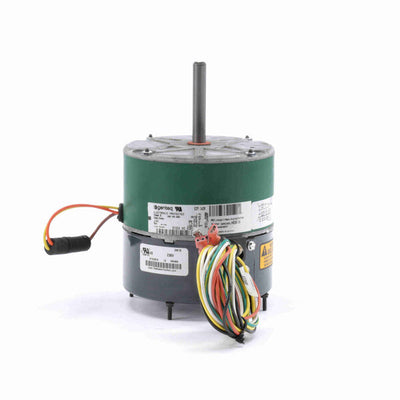

Genteq Condenser Fan ECM Motor, 850/1100 RPM, 1/5 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
Genteq Condenser Fan ECM Motor, 850/1100 RPM, 1/5 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
Availability:
Out-Stock
- Evergreen OM - Retrofit Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 55" Leads
- Extended Clampbolts, Belly Band
$284.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585020592 |
| Output HP | 1/5 Hp |
| Frequency | 60 Hz |
| Current | 2.8 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | No |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 850/1100 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 60 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Electronically Commutated Motor |
| Poles | 12 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 2.57 in |
| Shaft Extension | 3.00 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 8.49 in |
| Shaft Diameter | 0.500 in |
