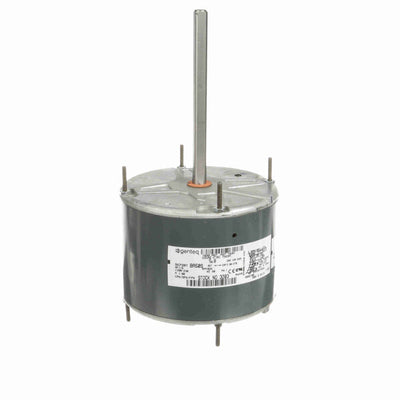

Genteq Condenser Fan Motor, 825 RPM, 1/6 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- Condenser Fan - Heat Pump Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Extended Clampbolts, Belly Band
Motor fit checks
This Genteq condenser fan motor listing is for SKU 3203 with 825 RPM, 1/6 HP, 208-230 V and a 5.6 inch diameter 48 frame design.
- Confirm horsepower, voltage, RPM, frame, shaft diameter, rotation, lead length and mounting position.
- Match the motor to condenser fan or heat pump equipment documentation before checkout.
- Keep packaging intact until the replacement fit is verified.
Related products and categories
Use these SupplyShop links to compare nearby sizes, equipment types and replacement paths before checkout.
- Condenser Fan Motors
- Condenser Fan ECM Motors
- HVAC Motors
- Genteq Condenser Fan ECM Motor, 850/1100 RPM, 1/3 HP, 208-230 V, 48 Frame, Fully Enclosed Air Over
- Genteq Condenser Fan ECM Motor, 850/1100 RPM, 1/5 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- Fasco Condenser Fan Motor, 1075 RPM, 3/4 HP, 208/230 V, 48 Frame, Open Air Over
- Century Condenser Fan Motor, 825 RPM, 1/8-1/15 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
$278.00 USD
PRODUCT INFO
Motor fit checks
This Genteq condenser fan motor listing is for SKU 3203 with 825 RPM, 1/6 HP, 208-230 V and a 5.6 inch diameter 48 frame design.
- Confirm horsepower, voltage, RPM, frame, shaft diameter, rotation, lead length and mounting position.
- Match the motor to condenser fan or heat pump equipment documentation before checkout.
- Keep packaging intact until the replacement fit is verified.
Applications
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with belly band or extended clamp mounting
Features
Automatic thermal protection Extended thru-bolts, 3/4" long on SE end and 1/2" on OSE end Mounting holes in shell for capacitor bracket 1/2" diameter shaft 6" long with 2 full flats at 90° Electrically reversible
Related products and categories
Use these SupplyShop links to compare nearby sizes, equipment types and replacement paths before checkout.
- Condenser Fan Motors
- Condenser Fan ECM Motors
- HVAC Motors
- Genteq Condenser Fan ECM Motor, 850/1100 RPM, 1/3 HP, 208-230 V, 48 Frame, Fully Enclosed Air Over
- Genteq Condenser Fan ECM Motor, 850/1100 RPM, 1/5 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- Fasco Condenser Fan Motor, 1075 RPM, 3/4 HP, 208/230 V, 48 Frame, Open Air Over
- Century Condenser Fan Motor, 825 RPM, 1/8-1/15 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585020059 |
| Output HP | 1/6 Hp |
| Frequency | 60 Hz |
| Current | 1.00 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 825 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 8 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 3.57 in |
| Shaft Extension | 6.00 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 10.31 in |
| Shaft Diameter | 0.500 in |
