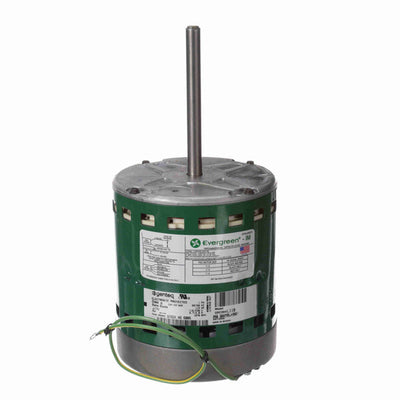

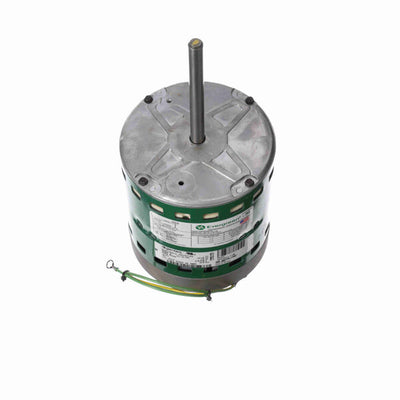

Genteq Fan & Blower Motor, 1075 RPM, 1/2 HP, 115/230 V, 48 Frame, Semi Enclosed

Availability:
In-Stock
  • Evergreen IM - Retrofit Blower Motor
  • 5.6" Diameter - 48 Frame
  • Electronically Commutated (ECM)
  • Electronically Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 42" Leads
  • Belly Band

$232.00 USD

Title
Buy Now
SKU:
6005
ID:
HM108-0002

PRODUCT INFO

Applications
For use in ALL air handler, heat pump, electric and fossil fuel furnace applications


Features
Constant fan (600 RPM) operation optimizes the efficiency of IAQ accessories and reduces air stratification in the home. Ball bearing. 80% High efficiency ECM technology. RPM range: 600–1075. Quiet operation. Five pre-programmed speed-torque profiles. Correct direction of rotation automatically determined by patented auto-rotation capability

SPECIFICATIONS

Nameplate Specifications
UPC815585020547
Output HP1/2 Hp
Frequency60 Hz
Current6.7/4.0 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionNo
ULNo
Voltage115/230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAN
Technical Specifications

Electrical TypeElectronically Commutated Motor
Poles12
MountingRound
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length4.82 in
Shaft Extension4.92 in
RotationReversible
Frame MaterialRolled Steel
Overall Length11.26 in
Shaft Diameter0.500 in
