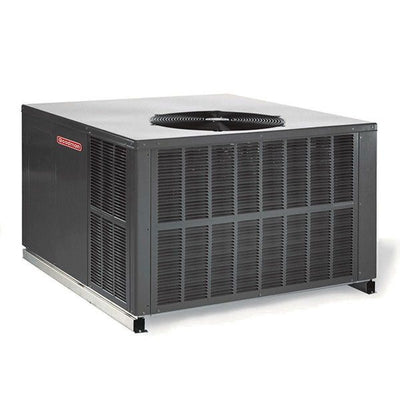

Goodman 3.5 Ton 15 SEER Downflow/Horizontal Packaged Air Conditioner
PRODUCT INFO
The GPC15M combines a Goodman air conditioner, evaporator coil, and blower to provide efficient cooling from a single convenient unit. A scroll compressor provides consistent refrigerant flow, and Goodman's superior coil design is featured to ensure high efficiency regardless of whether you're heating or cooling your home.The GPC1542M41 can be used in either downflow or horizontal airflow applications and it even includes convenient access panels that make for a quick installation. Streamline your cooling today with a Goodman packaged air conditioner.
Advanced Coil Design
The condenser coil of this packaged unit is designed with aluminum fins and copper tubing to maximize surface area and efficiency.
High-Efficiency Compressor
This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
Secure Cabinet
The cabinet of the GPC1542M41 is built to last. A galvanized steel casing with a powder paint finish prevents fading and corrosion while louvered panels and a coil guard keep the most important components secure.
Filter Drier
A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.
Quiet Comfort
A sound insulated blower compartment means that the GPC1542M41 provides comfort without disrupting your home.
Energy-Efficient Circulation
PSC blower motors are energy hogs. The EEM motor in the GPC1542M41 reduces electrical consumption, ensuring efficient circulation.
Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.
SPECIFICATIONS
General Information | |
Type | Air Conditioner Packaged Unit |
Operating Mode | Cooling |
Refrigerant Type | R-410A |
Configuration | Horizontal |
Installation Location | Outdoor |
Compressor Stages | Single |
DOE Regional Compliance | Nationwide |
Installation Available | Yes |
Product Line | GPC15M |
Performance | |
Capacity | 3.5 Tons |
Cooling Capacity | 42000 BTU |
SEER | 15.0 |
EER | 11.6 |
Maximum Air Flow | 1383 CFM |
Minimum Air Flow | 942 CFM |
Maximum Sound Level | 78 dB |
Dimensions | |
Product Height | 42 1/4 Inches |
Product Width | 47 Inches |
Product Depth | 51 Inches |
Product Weight | 438 Pounds |
Shipping Weight | 459 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
ISO Certified | Yes |
AHRI Reference Number | 4385088 |
