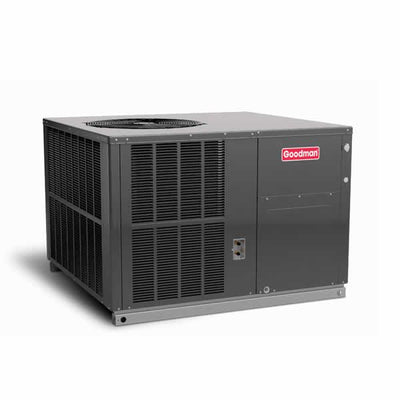

Goodman 5 Ton 14 SEER Downflow/Horizontal Packaged Air Conditioner
PRODUCT INFO
The GPC14M combines a Goodman condensor, evaporator coil, and blower to provide efficient cooling IN a single convenient unit. A rotary compressor means less maintenance, and Goodman's superior coil design helps to ensure efficient energy use. The GPC14M even includes convenient access panels that make for a quick installation and easy service.
Advanced Coil Design
The condenser coil of this packaged unit is designed with aluminum fins and copper tubing to maximize performance and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
Secure Cabinet
The cabinet of the GPC14M is built to last. A galvanized steel casing with a powder paint finish prevents fading and corrosion while louvered panels and a coil guard keep the most important components secure from damage.
Optional Electric Heat
With the GPC14M, you have the option to purchase an electric heat kit ranging from 5-20kw for field installation.
Energy-Efficient Circulation
PSC blower motors are energy hogs. The EEM motor in the GPC14M reduces electrical consumption, ensuring efficient circulation.
Quiet Comfort
A sound insulated blower compartment and quiet horizontal discharge mean that the GPC14M provides comfort without disrupting your home.
Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.
SPECIFICATIONS
General Information | |
Type | Air Conditioner Packaged Unit |
Operating Mode | Cooling |
Refrigerant Type | R-410A |
Configuration | Downflow/Horizontal |
Installation Location | Outdoor |
Compressor Stages | Single |
DOE Regional Compliance | Nationwide |
Installation Available | Yes |
Motor Type | EEM |
UPC | 663051524866 |
Performance | |
Capacity | 5.0 Tons |
Cooling Capacity | 56000 BTU |
SEER | 14.0 |
EER | 11.0 |
Maximum Air Flow | 2000 CFM |
Minimum Air Flow | 1360 CFM |
Maximum Sound Level | 80.2 dB |
Dimensions | |
Product Height | 42 3/4 Inches |
Product Width | 47 Inches |
Product Depth | 51 Inches |
Product Weight | 448 Pounds |
Shipping Weight | 458 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
ISO Certified | Yes |
AHRI Reference Number | 7513343 |
