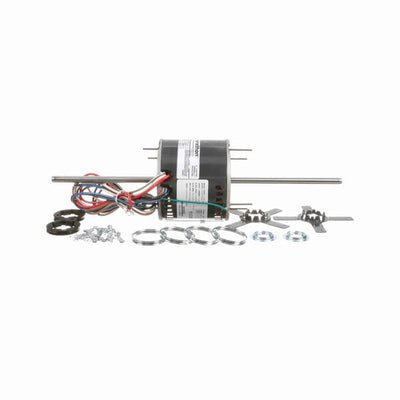

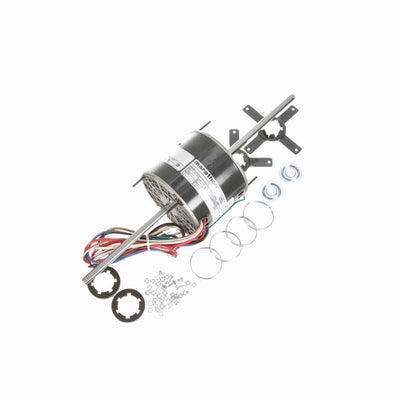

Marathon Coil / Room Air Conditioner Motor, 1200 RPM, 1/3 HP, 208-230 V, 48Y Frame, Open Air Over

Availability:
In-Stock
  • Open frame and brackets
  • Multi-speed capability
  • Automatic reset thermal protector
  • 30” leads, CCW rotation, fixed lead end
  • 1” extended Thru-bolts both ends
  • 20” overall length
  • Length adapter kits included
  • Capacitor not included, see Accessories section

$187.00 USD

Title
Buy Now
SKU:
X045
ID:
HM105-0016

PRODUCT INFO

Applications
For use in air conditioning furnace blowers, fans, exhausters and similar air over applications

Features
Includes length adapter bracket. 60 Hz, continuous duty. 40°C ambient. Ball bearings. Automatic reset thermal protection. Resilient ring or stud mounting. Extended thru-bolts are #10-32; “R” minimum is achieved with adapter bracket reversed. Universal mount. Mounting hardware included. Shaft length is the same on both ends

SPECIFICATIONS

Nameplate Specifications
UPC722856038944
Output HP0.33 Hp
Frequency60 Hz
Current3.4 A
Service Factor1
DutyContinous
Frame48Y
Thermal ProtectionAutomatic Lock Rotor Only
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Ring - Extended Studs
Opp Drive End BearingBall
Shaft TypeSpecial Extension Both Sides
Frame Length4.25 in
Shaft Extension7.81 in
RotationFixed Counterclockwise
Frame MaterialRolled Steel
Overall Length20.00 in
Shaft Diameter0.500 in
