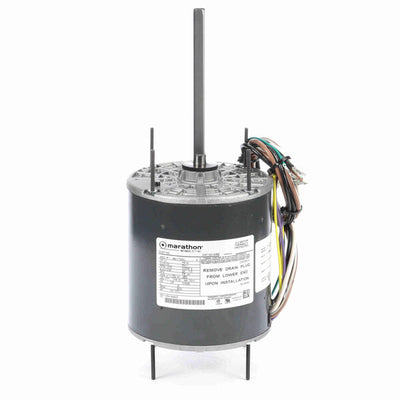

Marathon Condenser Fan Motor, 1075 RPM, 3/4 HP, 208-230 V, 48Y Frame, Totally Enclosed Non Ventilated
- Frame and end brackets enclosed
- Single speed model
- 30” long leads, Shaft slinger
- Weather resistant reversing plug
- 1-1/2” Thru-bolts on shaft end, 1” thru-bolts on lead end
- Automatic reset thermal protector
- Weep holes with removable plugs on end brackets. Remove bottom plug after installation
- Lug mount kits and other accessories available (see Accessories section)
- Capacitor not included, see Accessories section
- 1-1/2" thru-bolts, opposite shaft end
$308.00 USD
PRODUCT INFO
Applications
Direct drive condenser fans for all angle mounting. Needs to be mounted in the airflow of the fan for proper cooling.
Features
Automatic thermal protection. Condensate drain holes. Rotation: reversible with use of quick connectors. Slinger on shaft High breakdown torque. High temperature thermal protector reduces nuisance tripping
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856038005 |
| Output HP | 3/4 Hp |
| Frequency | 60 Hz |
| Current | 4.2-3.7 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48Y |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Non Ventilated |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round - Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 5.50 in |
| Shaft Extension | 6.06 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length: | 12.50 in |
| Shaft Diameter | 0.500 in |
