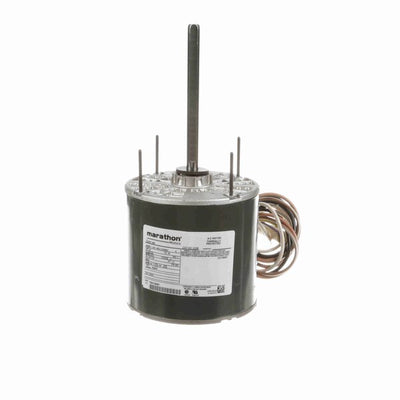

Marathon Condenser Fan Motor, 1075 RPM, 3/4 HP, 208/230 V, 48Z Frame, Open Air Over

Availability:
In-Stock
  • Frame and shaft end bracket enclosed
  • Single speed model
  • Weather resistant reversing plug
  • 30” long leads
  • Shaft with flat
  • Shaft slinger
  • 1-5/8” Extended thru-bolts on shaft end
  • Automatic reset thermal protection
  • Lug mount kits and other accessories available, see Accessories section

$169.00 USD

Title
Buy Now
SKU:
X298
ID:
HM101-0120

PRODUCT INFO

Applications
Designed for standard replacement horizontal or vertical shaft up mounting on central air conditioning condenser units

Features
Automatic thermal protection. Electrically reversible. Shaft end plate enclosed. Energy efficient. Plug reversible

SPECIFICATIONS

Nameplate Specifications
UPC722856037657
Output HP3/4 Hp
Frequency60 Hz
Current4.1-3.5 A
Service Factor1
DutyContinuous
Frame48Z
Thermal ProtectionAutomatic Lock Rotor Only
ULRecognized
Voltage208/230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingRound - Extended Studs
Opp Drive End BearingBall
Shaft TypeSingle Special Extension
Frame Length4.75 in
Shaft Extension6.06 in
RotationSelective Counterclockwise
Frame MaterialRolled Steel
Overall Length:
12.91 in
Shaft Diameter0.500 in
