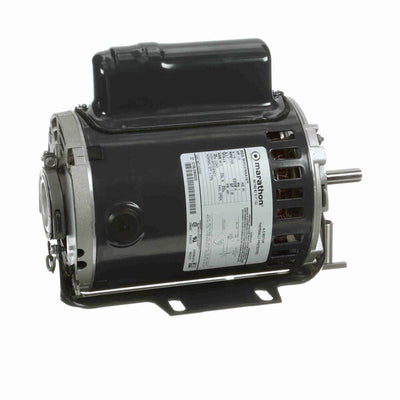

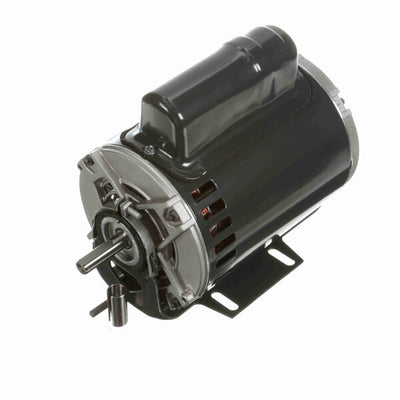

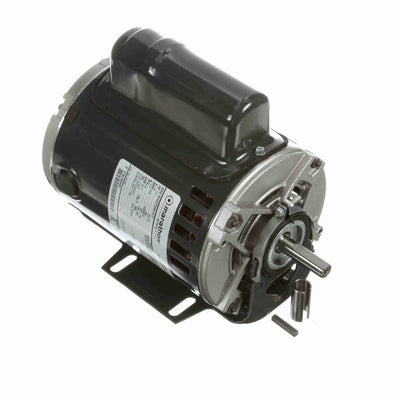

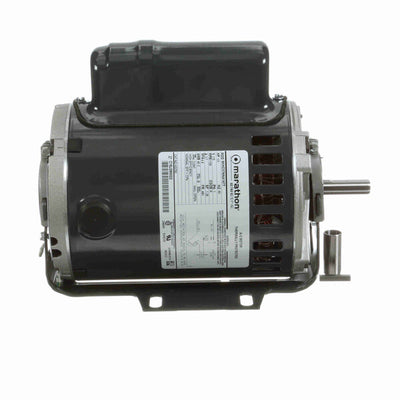

Marathon Direct Drive Motor, 1725 RPM, 1/3 HP, 115 V, 48Y Frame, Open Air Over

Availability:
In-Stock
  • Ball bearings
  • Energy saver design
  • 5/8" shaft adapter included
  • Heavy gauge steel frame and base
  • 48Y and 48YZ frame have 48/56 frame mounting holes
  • Connected for CCW rotation facing opposite shaft end. Reversible by reconnection of leads

$448.00 USD

Title
Buy Now
SKU:
HG700
ID:
HM106-1S9-0051

PRODUCT INFO

Features
Automatic reset overload protection. 2-1/2" resilient rings. All-angle bearings. 1/2"–5/8" diameter shaft adapter included. Continuous duty, 40°C ambient. CCW/CW electrically reversible rotation. Fig. A slotted frame, base included: fits 48 and 56 frame mount. Fig. B length adjustable, base not included: 1-1/2" splined hub (OSE) for adjustable mounting

SPECIFICATIONS

Nameplate Specifications
UPC722856040213
Output HP1/3
Frequency60 Hz
Current3.7 A
Service Factor1
DutyContinuous
Frame48Y
Thermal ProtectionAuto
ULRecognized
Voltage115 V
Speed1725 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeSplit Start Capacitor Run
Poles4
MountingResilient Rings
Opp Drive End BearingBall
Frame Length
6.62 in
Shaft Extension1.5 in
RotationClockwise/Counterclockwise
Frame MaterialRolled Steel
Overall Length10.39 in
Shaft Diameter0.500 in
