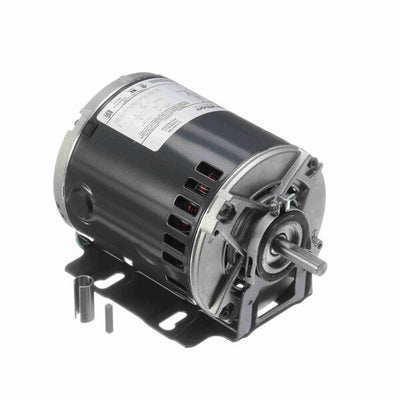

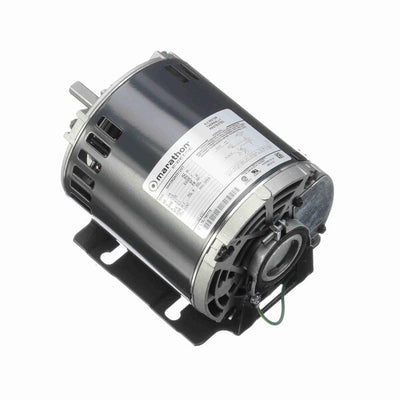

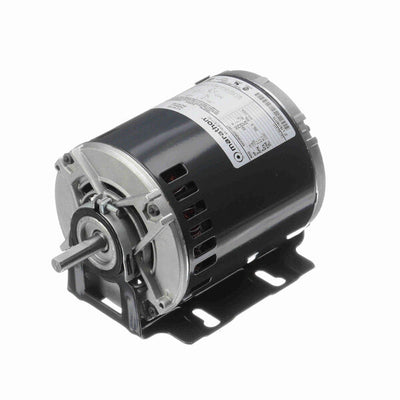

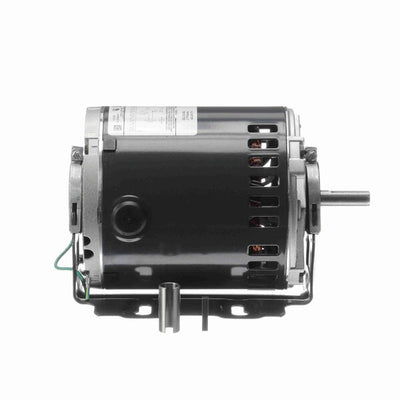

Marathon Direct Drive Motor, 1725 RPM, 1/4 HP, 115 V, 48Y Frame, Open Air Over

Availability:
In-Stock
  • Ball bearings
  • Heavy gauge steel frame and base
  • Consult factory for accessory kit and/or modification selection
  • 1/2" shaft with 5/8" adapter and key
  • 48Y and 48YZ frame have 48/56 frame mounting holes

$152.00 USD

Title
Buy Now
SKU:
4701
ID:
HM106-0020

PRODUCT INFO

Applications

  • Residential and commercial fans and blowers where low starting torque is required (air conditioning, roof ventilators, and exhaust fans)
  • With resilient base

Features
Automatic reset overload protection.|2-1/2" resilient rings.All-angle bearings.1/2"–5/8" diameter shaft adapter included.Continuous duty, 40°C ambient.CCW/CW electrically reversible rotation.Fig. A slotted frame, base included: fits 48 and 56 frame mount. B length adjustable, base not included: 1-1/2" splined hub (OSE) for adjustable mounting

SPECIFICATIONS

Nameplate Specifications
UPC722856039293
Output HP1/4 Hp
Frequency60 Hz
Current5.1
Service Factor1.35
Efficiency
51.9 %
DutyContinuous
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1725 rpm
Phase1
Insulation ClassВ
EnclosureOpen Enclosed
Ambient Temperature40 °C
CSAYes
Technical Specifications

Electrical TypeSplit Phase
Poles4
MountingResilient Base
Opp Drive End BearingBall
Frame Length
5.41 in
Shaft Extension1.5 in
RotationCounterclockwise/Clockwise
Frame MaterialRolled Steel
Overall Length8.94 in
Shaft Diameter0.500 in
