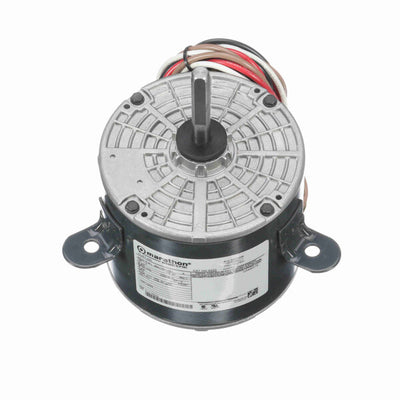

Marathon OEM Replacement Motor, 1075 RPM, 1/3 HP, 230 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • Multi-speed model, as noted, 3 lug mounting
  • Capacitor not included, see Accessories section
  • Ball bearings
  • HM102-0019 replaces the following brands and item numbers: Carrier HC41VE700 & 701

$242.00 USD

Title
Buy Now
SKU:
X222
ID:
HM102-1S9-0019

SPECIFICATIONS

Nameplate Specifications
UPC722856041937
Output HP0.33 Hp
Frequency60 Hz
Current2.6 A
Service Factor1
DutyContinous
Frame48Y
Thermal ProtectionAutomatic Lock Rotor Only
ULRecognized
Voltage230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingThree Lug Mount
Opp Drive End BearingBall
Shaft TypeSingle Special Extension
Frame Length4.25 in
Shaft Extension3.06 in
RotationSelective Counterclockwise
Frame MaterialRolled Steel
Overall Length8.25 in
Shaft Diameter0.500 in
