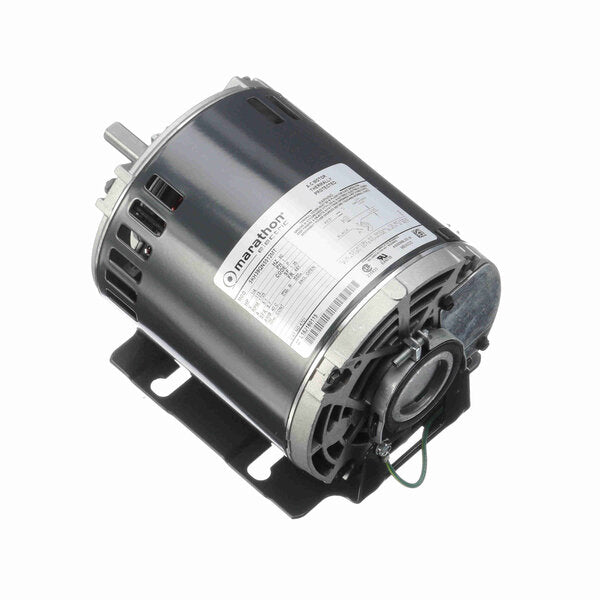

Marathon Direct Drive Motor, 1725 RPM, 1/4 HP, 115 V, 48Y Frame, Open Air Over
- Ball bearings
- Heavy gauge steel frame and base
- Consult factory for accessory kit and/or modification selection
- 1/2" shaft with 5/8" adapter and key
- 48Y and 48YZ frame have 48/56 frame mounting holes
$247.00 USD
PRODUCT INFO
Applications
- Residential and commercial fans and blowers where low starting torque is required (air conditioning, roof ventilators, and exhaust fans)
- With resilient base
Features
Automatic reset overload protection.|2-1/2" resilient rings.All-angle bearings.1/2"–5/8" diameter shaft adapter included.Continuous duty, 40°C ambient.CCW/CW electrically reversible rotation.Fig. A slotted frame, base included: fits 48 and 56 frame mount. B length adjustable, base not included: 1-1/2" splined hub (OSE) for adjustable mounting
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856039293 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 5.1 |
| Service Factor | 1.35 |
| Efficiency | 51.9 % |
| Duty | Continuous |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1725 rpm |
| Phase | 1 |
| Insulation Class | В |
| Enclosure | Open Enclosed |
| Ambient Temperature | 40 °C |
| CSA | Yes |
| Technical Specifications | |
| Electrical Type | Split Phase |
| Poles | 4 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Ball |
| Frame Length | 5.41 in |
| Shaft Extension | 1.5 in |
| Rotation | Counterclockwise/Clockwise |
| Frame Material | Rolled Steel |
| Overall Length | 8.94 in |
| Shaft Diameter | 0.500 in |
