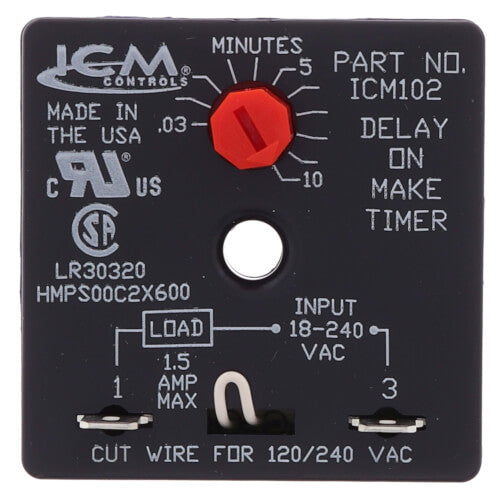

ICM ICM102 Delay on Make Timer (.03-10 Minute Adjustable Delay)
Replaces: A-1: EAC-701-ADJ; Diversified: AC-800; Gemline: 1C310, 1C213; Mars: 32019, 32391, 32367; Supco: TD69; Wagner/DiversiTech: ADM-1
$18.91 USD
SKU:
ICM102B
ID:
PH501-2S9-3186
Categories:
PRODUCT INFO
Mode of Operation - When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
Delay on Make Timers are ideal for compressor staging and stagger starting multiple motors and other equipment. Helps to reduce power surges.
Features
- Universal voltage operation
- Higher 1.5 amp power rating
- Knob-adjustable time delays
- .03-10 minute (1.8-600 seconds) adjustable delay
- Ideal for compressor staging
- One model replaces many in field
- Works with anticipator-type thermostats
- Simple 2-wire hookup
SPECIFICATIONS
| General Information | |
| Time Delay | .03-10 Min Adjustable |
| Voltage | 18/240 VAC |
| Amp Inrush | 15 |
| Voltage Drop | 2.5v @1amp |
| Replaces | 32367; 32019; 1C310; 1C213; 32391; EAC-701-ADJ; AC-800; ADM-1; TD69 |
| Size | 2" x 2" |
| Amperage | 1.5 |
| Product Type | Delay on Make |
| Holding Current | 40 mA |
| Wiring | 2 Wire |
| OEM | Wagner/DiversiTech; A-1; Supco; Gemline; MARS; Diversified |
