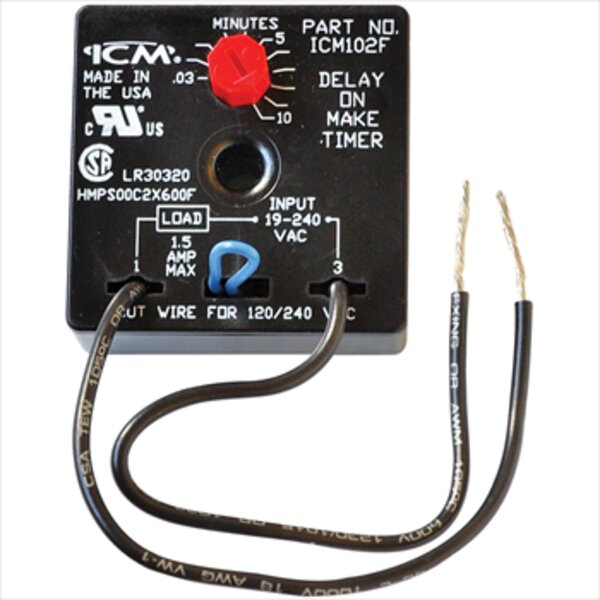

ICM ICM102F Delay on Make Timer, 6" Wire Leads (.03-10 Minute Adjustable Delay)
Replaces: Supco: TD69W; Wagner/DiversiTech: ADM-2
$19.64 USD
SKU:
ICM102FB
ID:
PH501-2S9-3187
Categories:
PRODUCT INFO
Mode of Operation - When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
Delay on Make Timers are ideal for compressor staging and stagger starting multiple motors and other equipment. Helps to reduce power surges.
Features
- Universal voltage operation
- Higher 1.5 amp power rating
- Knob-adjustable time delays
- .03-10 minute (1.8-600 seconds) adjustable delay
- Ideal for compressor staging
- One model replaces many in field
- Works with anticipator-type thermostats
- Simple 2-wire hookup
SPECIFICATIONS
| General Information | |
| Product Type | Delay on Make |
| Wiring | 6" Wire Leads 2-Wire |
| Amperage | 1.5 |
| Holding Current | 40 mA |
| Voltage Drop | 2.5v @1amp |
| OEM | Wagner/DiversiTech Supco |
| Time Delay | .03-10 Min Adjustable |
| Voltage | 18/240 VAC |
| Amp Inrush | 15 |
| Size | 2" x 2" |
| Replaces | TD69W; ADM-2 |
