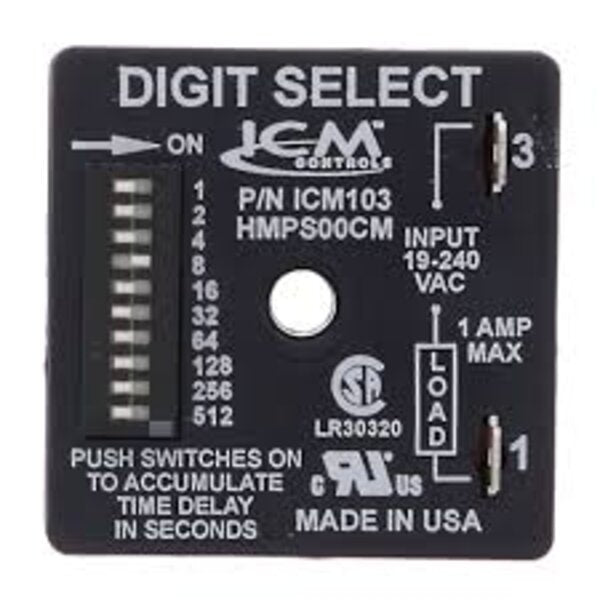

ICM ICM103B Delay on Make Timer (1-1,023 Second Switch-Settable Delay)
$43.98 USD
SKU:
ICM103B
ID:
PH501-2S9-3195
Categories:
PRODUCT INFO
Delay on Make Timers are ideal for compressor staging and stagger starting multiple motors and other equipment. Helps to reduce power surges.
Mode of Operation - When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
Features
- Highly precise digital timing
- Switch-settable time delays
- Ideal for ice machine applications
- Universal voltage operation
- Repeat accuracy .5% over voltage and temperature range
SPECIFICATIONS
| General Information | |
| Time Delay | 1-1023 Sec Switch-Settable |
| Voltage | 18/240 VAC |
| Amp Inrush | 10 |
| Voltage Drop | 2.5v @1amp |
| Replaces | 32396; 32394; 1C213; TMF-80; TMF-19; TD3001A; 3310-068; 7061 |
| Product Type | Delay on Make |
| Amperage | 1 |
| Holding Current | 40 mA |
| Size | 2" x 2" |
| OEM | Supco; MARS; Ice-O-Matic; Robertshaw; A-1 |
