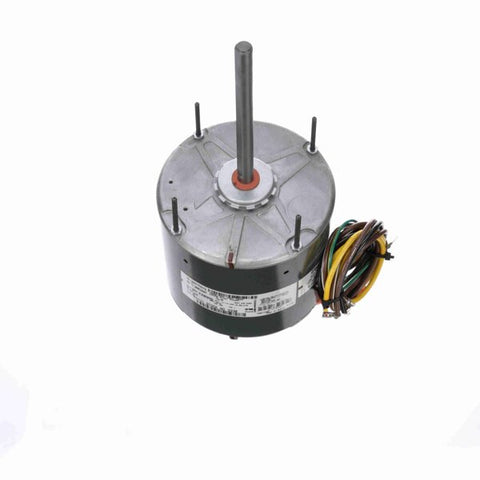

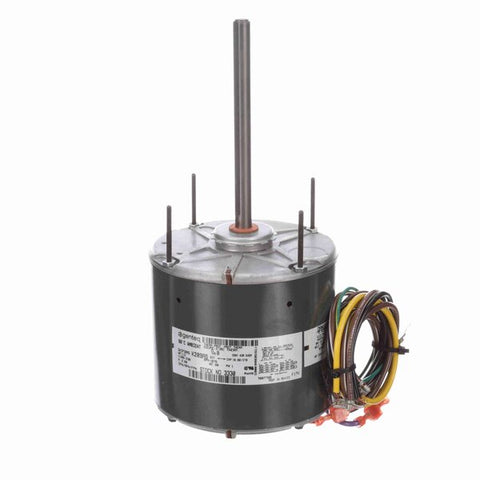

Genteq Condenser Fan Motor, 1075 RPM, 1/2 HP, 208-230 V, 48 Frame, Open Air Over
- Condenser Fan - Heat Pump Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Shaft Up/Horizontal, Extended Pulley End Clampbolts, Belly Band
$223.00 USD
PRODUCT INFO
Applications
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with belly band or extended clamp screw mounting
Features
Automatic thermal protection. For shaft up application. Standard efficiency
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585021711 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 3.60 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 4.32 in |
| Shaft Extension | 6.00 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 11.88 in |
| Shaft Diameter | 0.500 in |
