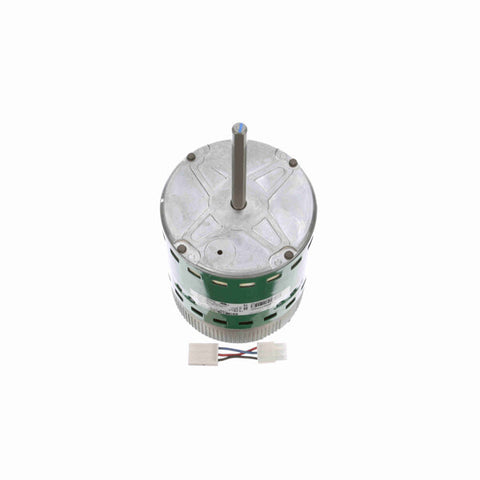

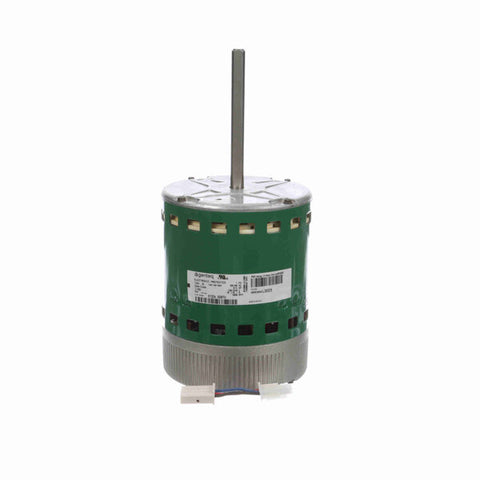

Genteq Fan & Blower Motor, 1050 RPM, 3/4 HP, 120/240 V, 48 Frame, Open Air Over
- Evergreen VS - ECM Variable Speed Replacement Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Electronically Protected
- Open Air Over
- Class B Insulation, 55°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
$501.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508024745 |
| Output HP | 3/4 Hp |
| Frequency | 60 Hz |
| Current | 10.1/6.1 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | No |
| UL | No |
| Voltage | 120/240 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Electronically Commutated Motor |
| Poles | 12 |
| Mounting | Round |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 4.82 in |
| Shaft Extension | 5.00 in |
| Rotation | Counterclockwise/Clockwise |
| Frame Material | Rolled Steel |
| Overall Length | 11.96 in |
| Shaft Diameter | 0.500 in |
