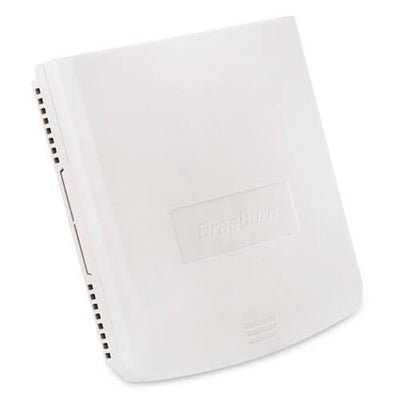

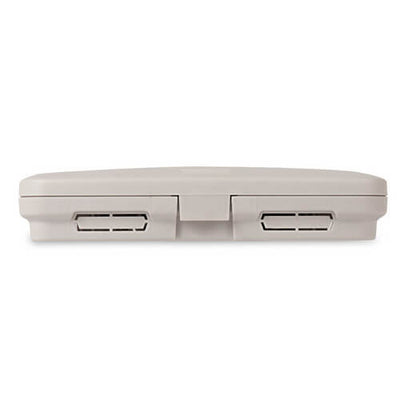

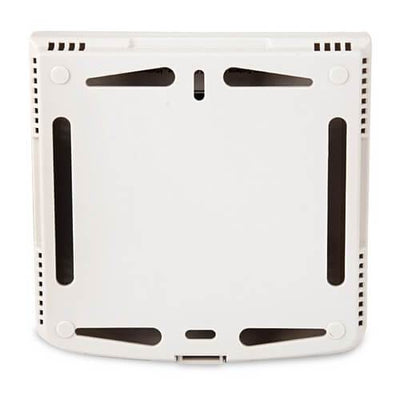

Braeburn 2-Zone Control Panel Model 140202 (2 Heat/1 Cool)

Availability:
In-Stock

Braeburn Zone Control Panels feature the latest in zone controls. Our economical two zone panels deliver maximum value for all two zone applications. Equipment and status can be determined at a glance with the monitoring LEDs built into the panel. User economy is improved with built in features such as last zone purge and economical opposite mode calling.

Warranty: 5 Years

$69.16 USD

Title
Buy Now

PRODUCT INFO

Features:

  • Compact 6" x 6" foot print maintains system appearance
  • Sustainable for residential and light commercial applications
  • Can be used with conventional 4 or 5 wire thermostats
  • Quick connect terminals speed installation and reliability
  • Compatible with electric, gas, oil and heat pump equipment
  • Controls 2 heating and 1 cooling stage
  • Emergency heat switch with remote terminals for total heat pump control
  • Fan purge into last calling zone for improved energy efficiency
  • The value choice in 2 zone panels
  • Dampers: PO/PC, PC/SR, PO/SR

Warranty: 5 years

SPECIFICATIONS




Panel Power:4 VA maximum (3.5 VA typical) for panel

System Power:4 VA (Zone Panel) + 1.0 VA per thermostat plus
damper requirements, not to exceed 35 VA

Protection:Electronic self resetting current limiting

Equipment:Relay driven 2A at 24 VAC

Zone Damper Control:Compatible with power open/power close, spring open/power close and spring close/power open dampers

Indicators (6):Power OK, status, equipment Rh, Rc, Damper 1 PO, PC; Damper 2 PO, PC

Switches:Non HP/HP, dual fuel no/yes, reversing valve B
active/O active, fan control plenum/system,
opposite mode call timer 20/15, 2nd stage lockout none/active, priority all/zone 1

Terminals:Rh, Rc, Y1, G, W1/E/W3, W2/O-B, C, E-Heat; panel power (2) and R, Y, G, W, C, PO, C, PC for each zone




Power: 24 VAC

Indicators: 6 LED Indicators

Construction: PC Board in High Impact Housing

Mounting: Wall or Return Air Plenum

Environmental: Storage - 40˚ F to 150˚ F (-40˚ to 65˚ C)
Operating - 20˚ F to 125˚ F (-30˚ F to 50˚ C)
