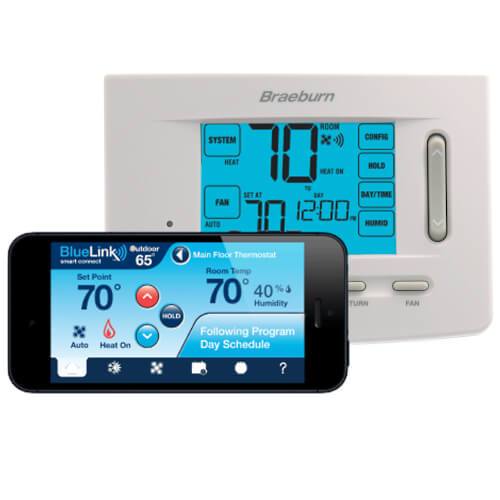

Braeburn BlueLink Model 7300 Wi-Fi Programmable Thermostat 2 Heat/1 Cool (Discontinued and now replaced by Braeburn 7205)
Model 7300 Smart Wi-Fi Universal Thermostat – Compatible with conventional and heat pump systems up to 1H / 1C. Optional Wi-Fi control via smartphone, tablet of PC using free BlueLink Smart Connect Application. Compatible with Braeburn wireless or wired remote sensors.
Warranty: 5 years
$78.50 USD
SKU:
BR7300
ID:
PH501-0033
PRODUCT INFO
Features
- Thermostat Features
- 7 Day, 5-2 Day or Non-Programmable
- Large 5 sq. in. Backlit Display
- Bright Blue Backlight Display
- Auto or Manual Changeover
- Residential or Commercial Modes
- Adjustable Temperature Limits
- Wired Remote Sensing
- Auxiliary Heat Fossil Fuel Option
- Hardwire or Battery Powered
- Programmable and Circulating Fan Modes
- Common "C" wire required to use Wi-Fi
Application Features
- Compatible with Virtually All Smartphones, Tablets or PC’s
- Multi-Color Program Groups Simplify Scheduling
- Text and E-Mail Service and Temperature Alerts
- QuickCopy Allows User to Duplicate Program and Configuration to Other Thermostats
- SmartData Energy Report Capability (Fall 2015)
- Monitor and Control Multiple Thermostats
- View Outdoor Temperature
- Adjust and View Indoor Humidity
- Easy Access Dealer Information
- Help Screens Guide User Through Application
Warranty 5 years
Braeburn 7300 Replaces*
- Honeywell* TH6210WF, TH6
- Emerson* 1F86U-42WF
- Pro1* T701i
- Nest* T100577, T200577, T3007ES
*Verify specific application requirements. All trademarks are the property of their respective owners.
SPECIFICATIONS
| Dimensions: | 3.8” x 5.56” x 1.19” | |
| Electric Rating: | 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 3 amp total maximum load (all terminals) | |
| AC Power: | 18-30 Volt AC | |
| DC Power: | 3.0 Volts DC (2 “AA” Alkaline batteries included) | |
| Compatibility: | 2 Heat/1 Cool Heat Pump Systems 1 Heat /1 Cool Conventional Systems | |
| Control Range: | 45° to 90° F (7° to 32° C) | |
| Display Range: | 40° to 99° F (5° to 37° C) | |
| Accuracy: | +/- 1° F (+/- .5° C) | |
| Wi-Fi Communication: | 802,11 | |
| Terminations: | Rh, Rc, C, W2, W1/E/W3, O/B, G, Y2, Y1, K |
