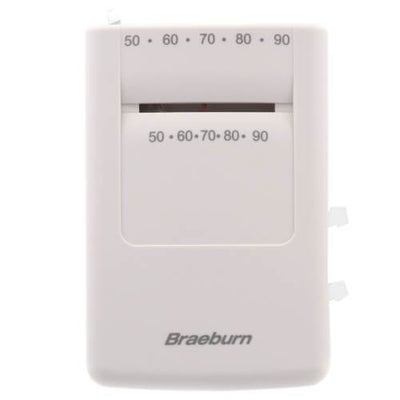

Braeburn Builder Model 500 Thermostat (24V)
Warranty: 1 Year
$22.24 USD
SKU:
BR500
ID:
PH501-0001
PRODUCT INFO
Features
- Dependable Switch Performance
- Environmentally Safe- Mercury-Free

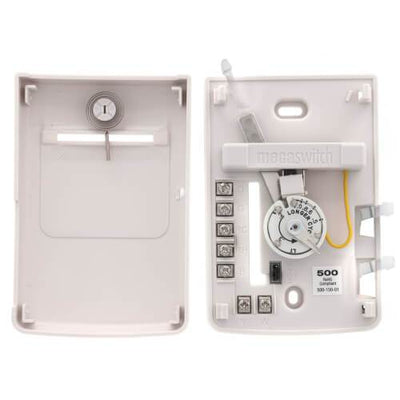

- Integrated Sub-Base and Front Mounted Wiring Terminals Make Installation Easy
- Separate O & B Terminals (Model 500 Only)
- Plated Terminals Prevent Corrosion
- No Leveling Required During Installation
Warranty: 1 year
Braeburn 500 Replaces
- Honeywell* T87F, T812C, T834
- Emerson* 1C26, 1F56, 1E56, 1D56
SPECIFICATIONS
| Dimensions: | 4.60” x 3.13” x 1.25” | |
| Electric Rating: | 24 Volt AC (18-30 Volt AC) | |
| Heat Anticipation: | 0.15 to 1.2 amps | |
| Compatibility: | Single stage gas, oil or electric heating or cooling systems, single stage heat pump systems, 250mv – 750mv millivolt heating systems | |
| Control Range: | 50° to 90° F (10° to 32° C) | |
| Display Range: | 14° to 140° F (-10° to 60° C) | |
| Accuracy: | +/- 1° F (+/- .5° C) | |
| Storage Temperature: | 14° to 140° F (-10° to 60° C) | |
| Operating Humidity: | 5% to 95% Relative Humidity | |
| System Lever: | COOL/OFF/HEAT | |
| Fan Control Lever: | AUTO/ON | |
| Terminations: | O, G, Rc, Rh, B, Y, W |
