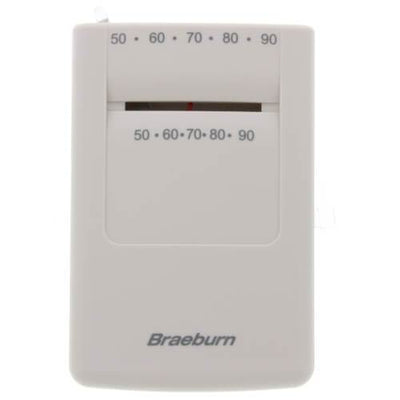

Braeburn Builder Model 505 Thermostat (24V)
Warranty: 1 Year
$19.53 USD
SKU:
BR505
ID:
PH501-0003
Categories:
PRODUCT INFO
Features:
- Dependable Switch Performance
- Environmentally Safe- Mercury-Free
- Integrated Sub-Base and Front Mounted Wiring Terminals Make Installation Easy
- Plated Terminals Prevent Corrosion
- No Leveling Required During Installation
Warranty: 1 year
Braeburn 505 Replaces:
- Honeywell* T87F, T812A, T834
- Emerson* 1F30, 1E30, 1D30, 1C30, 1C20
*All trademarks are the property of their respective owners
SPECIFICATIONS
| Dimensions: | 4.60” x 3.13” x 1.25” | |
| Electric Rating: | 24 Volt AC (18-30 Volt AC) | |
| Heat Anticipation: | 0.15 to 1.2 amps | |
| Compatibility: | Single stage gas, oil or electric heating systems, 250mv – 750mv millivolt heating systems | |
| Control Range: | 50° to 90° F (10° to 32° C) | |
| Display Range: | 14° to 140° F (-10° to 60° C) | |
| Accuracy: | +/- 1° F (+/- .5° C) | |
| Storage Temperature: | 14° to 140° F (-10° to 60° C) | |
| Operating Humidity: | 5% to 95% Relative Humidity | |
| System Lever: | OFF/HEAT | |
| Terminations: | Rh, W |
