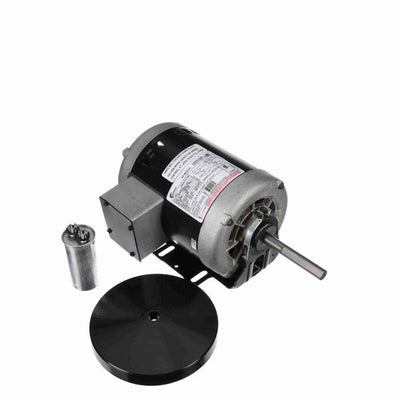

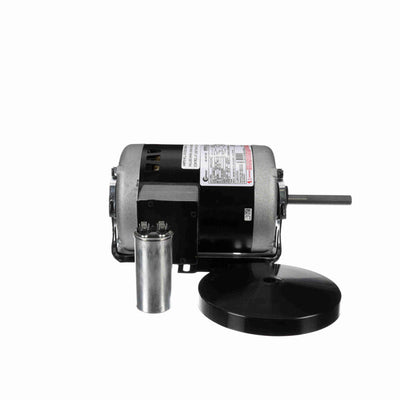

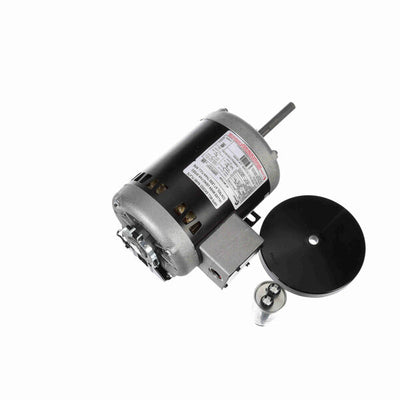

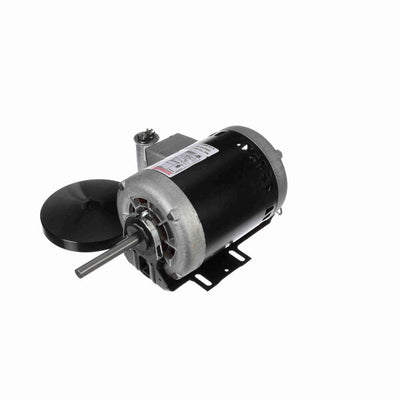

Century OEM Replacement Motor, 1100 RPM, 3/4 HP, 200-230/460 V, 56Z Frame, Open Drip Proof

Availability:
Out-Stock
  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
  • 1" (minimum) extended thru bolts
  • 5/8" dia. Shaft with both keyway and flat
  • HM102-0001 replaces the following brands and item numbers:
    B-095D, K63HXEFY-4599, K63HXEBD-4498, KCP48TG181S, KCP49U192S 8-184797-01

$877.00 USD

Sold Out

SKU:
C663
ID:
HM102-1S9-0001

SPECIFICATIONS

Nameplate Specifications
UPC786674016546
Output HP3/4 Hp
Frequency60 Hz
Current4.8-4.2/2.1 A
Service Factor1
DutyContinuous
FrameL56Z
Thermal ProtectionThermally Protected
ULRecognized
Voltage200-230/460 V
Speed1100 rpm
Phase1
Insulation ClassB
EnclosureOpen Drip Proof
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor, Single Or Dual Voltage
Poles6
MountingResilient Base
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length6.25 in
Shaft Extension4.13 in
RotationCounterclockwise
Frame MaterialRolled Steel
Overall Length14.41 in
Shaft Diameter0.625 in
