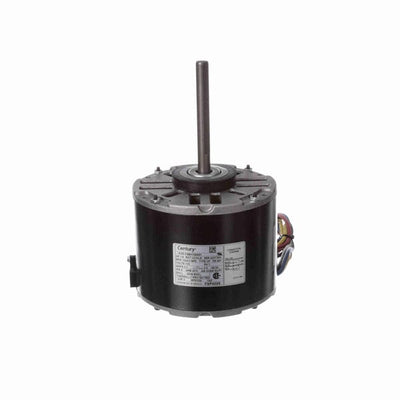

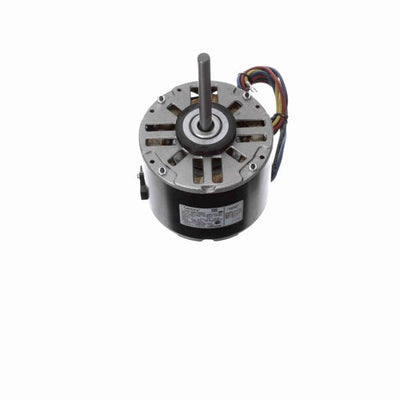

Century Direct Drive Motor, 1050 RPM, 1/8 HP, 115 V, 48 Frame, Semi Enclosed

Availability:
In-Stock
  • Furnace - Air Handler - Fan Coil Motor
  • Permanent Split Capacitor
  • Open Shaft and Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 26" Leads with Quick Connect Terminals
  • Resilient Ring Mount, Belly Band Mount
  • HM106-0084 replaces the following brands and item numbers: for shaded pole direct drive fans and furnace blowers

$310.00 USD

Title
Buy Now
SKU:
FSP4006
ID:
HM106-1S9-0084

PRODUCT INFO

Applications
Replacements for shaded pole direct drive fans and furnace blowers

Features
Automatic thermal protection. 2-1/2" rings for resilient mounting |Internally mounted capacitor simplifies wiring

SPECIFICATIONS

Nameplate Specifications
UPC786674021618
Output HP1/8 Hp
Frequency60 Hz
Current2.2 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1050 rpm
Phase1
Insulation ClassA
EnclosureSemi Enclosed
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Rings
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length:
3.75 in
Shaft Extension4.75 in
RotationCounterclockwise Lead End
Frame MaterialRolled Steel
Overall Length9.61 in
Shaft Diameter0.500 in
