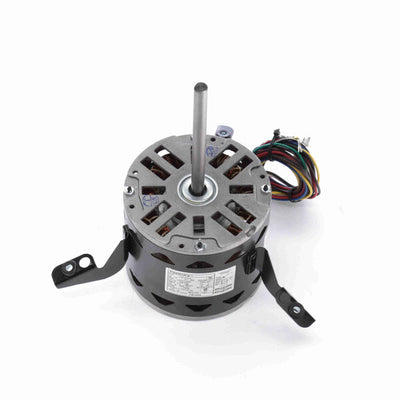

Century Direct Drive Motor, 1075 RPM, 1/2 HP, 208-230 V, 48 Frame, Open Air Over

Availability:
Out-Stock
  • Fan Coil - Room Air Conditioner - Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 50°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 26" Leads
  • Flex Mount

$367.00 USD

Sold Out

SKU:
FM1056
ID:
HM106-1S9-0065

PRODUCT INFO

Features
Automatic thermal protection. Reversible rotation. Shaft: 1/2" x 6" long. Leads: all 26" long. Lugs: three, 120° apart. Capacitor not included

SPECIFICATIONS

Nameplate Specifications
UPC786674021137
Output HP1/2 Hp
Frequency60 Hz
Current3.3 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature50 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingFlexible Arms
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
4.25 in
Shaft Extension6 in
RotationReversible
Frame MaterialRolled Steel
Overall Length10.86 in
Shaft Diameter0.500 in
