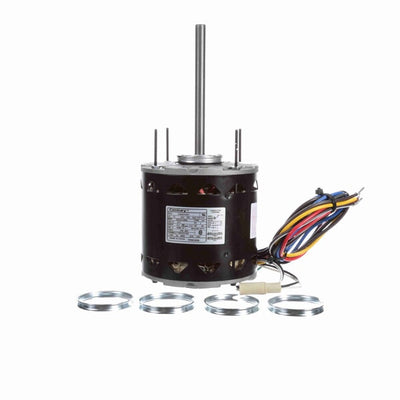

Century Direct Drive Motor, 1075 RPM, 1/2 HP, 277 V, 48 Frame, Open Air Over

Availability:
Out-Stock
  • Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 27" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting
  • HM106-0044 replaces the following brands and item numbers: Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.

$292.95 USD

Sold Out

SKU:
7FD1056
ID:
HM106-1S9-0044

PRODUCT INFO

Applications
Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.

Features
Automatic thermal protection. Reversible rotation. Resilient rings included

SPECIFICATIONS

Nameplate Specifications
UPC786674010926
Output HP1/2 Hp
Frequency60 Hz
Current2.2 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage277 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature50 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Ring/Extended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
4.75 in
Shaft Extension6.4 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.30 in
Shaft Diameter0.500 in
