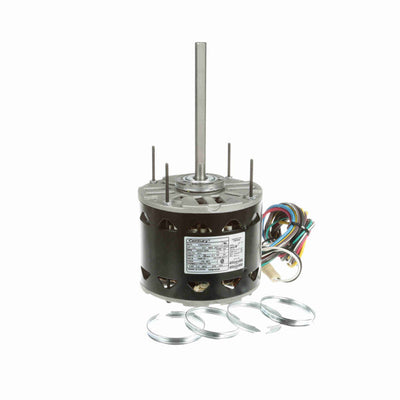

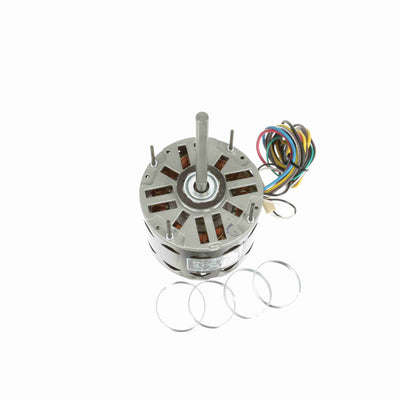

Century Direct Drive Motor, 1075 RPM, 1/3 HP, 277 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 27" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting
  • HM106-0054 replaces the following brands and item numbers: Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.

$178.00 USD

Title
Buy Now
SKU:
7FD1036
ID:
HM106-0054

PRODUCT INFO

Applications
Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.

Features
Automatic thermal protection. Reversible rotation. Resilient rings included

SPECIFICATIONS

Nameplate Specifications
UPC786674010919
Output HP1/3 Hp
Frequency60 Hz
Current1.9 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage277 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature50 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Ring/Extended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length
3.88 in
Shaft Extension6.4 in
RotationReversible
Frame MaterialRolled Steel
Overall Length10.93 in
Shaft Diameter0.500 in
