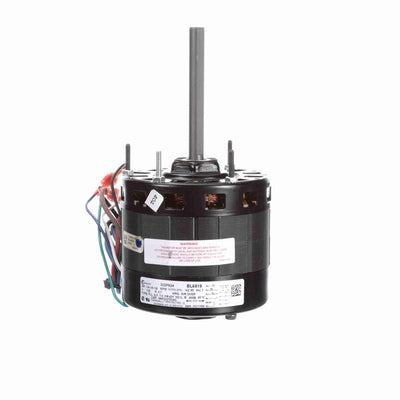

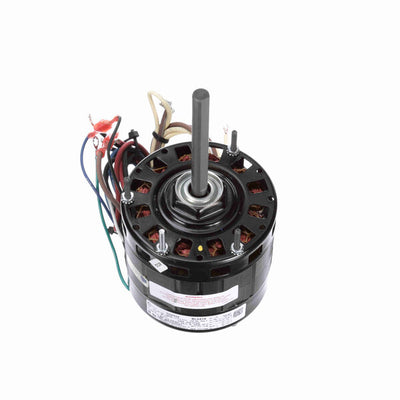

Century Direct Drive Motor, 1075 RPM, 1/4 1/5 1/6 HP, 115 V, 42 Frame, Open Air Over

Availability:
In-Stock
  • Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End End-Frame and Shaft End Shell, Lead End End-Frame Half Open and Lead End Shell Half Open, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 28" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

$317.10 USD

Title
Buy Now
SKU:
BL6519
ID:
HM106-1S9-0025

PRODUCT INFO

Applications
Direct drive furnace blowers, shaft mounted fans, unit heaters or any continuous duty application where the motor is located in the airstream

Features
Automatic reset thermal protectors. All motors have 30" leads. S88-272 has extended mounting studs on the shaft extension end of the motor.

SPECIFICATIONS

Nameplate Specifications
UPC786674014160
Output HP1/4 1/5 1/6 Hp
Frequency60 Hz
Current4.7 A
Service Factor1
DutyAir Over
Frame42Y
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension4.7 in
RotationReversible
Frame MaterialNa
Overall Length9.83 in
Shaft Diameter0.500 in
