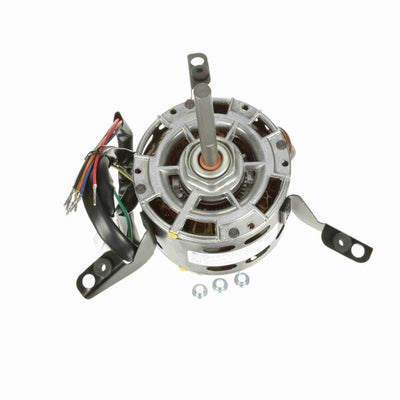

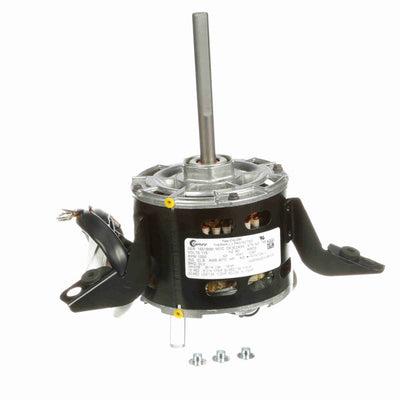

Century OEM Replacement Motor, 1000 RPM, 1/8-1/10-1/15-1/20-1/30 HP, 115 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Flex Mount
- HM102-0043 replaces the following brands and item numbers: L350, L450, L600, Universal Electric models DA3E200, DA3F100 and DA3G142
$318.15 USD
PRODUCT INFO
Features
PSC capacitor supplied and mounted. Fleximount design
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674007995 |
| Output HP | 1/8, 1/10, 1/15, 1/20, 1/30 Hp |
| Frequency | 60 Hz |
| Current | 2.6 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Lug |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.17 in |
| Shaft Extension | 5.080 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Rolled Steel |
| Overall Length | 7.47 in |
| Shaft Diameter | 0.500 in |
