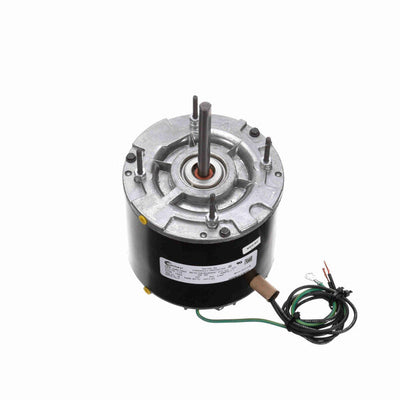

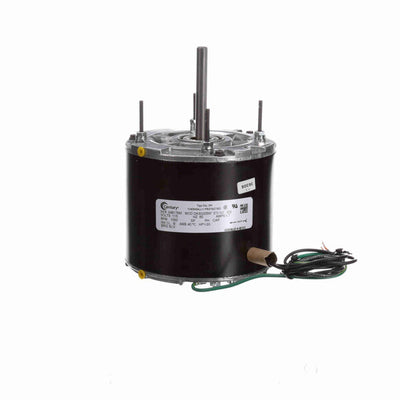

Century OEM Replacement Motor, 1050 RPM, 1/20 HP, 115 V, 42 Frame, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 21" Leads
- Extended Studs Shaft End
- HM102-0041 replaces the following brands and item numbers: for Sterling Radiator Company unit heater motors
$408.45 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674008176 |
| Output HP | 1/20 Hp |
| Frequency | 60 Hz |
| Current | 1.7 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.67 in |
| Shaft Extension | 3 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Rolled Steel |
| Overall Length | 7.25 in |
| Shaft Diameter | 0.375 in |
