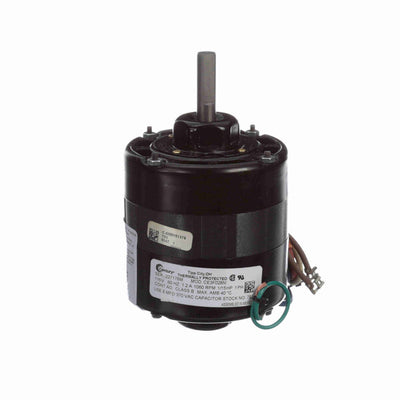

Century OEM Replacement Motor, 1060 RPM, 1/15 HP, 115 V, 4.4" Diameter, Open Air Over

Availability:
In-Stock
  • Heating - Ventilating - Welding Unit Motor
  • Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Not Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 24.5" Leads
  • Resilient Ring Mounting
  • HM102-0030 replaces the following brands and item numbers: Universal #CE3F025, CE3F004, and CE3F005

$293.00 USD

Title
Buy Now
SKU:
793
ID:
HM102-0030

SPECIFICATIONS

Nameplate Specifications
UPC786674007988
Output HP1/15 Hp
Frequency60 Hz
Current1.2 A
Service Factor1
DutyContinuous Air Over
Frame4.4
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1060 rpm
Phase1
Insulation Class
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Base
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension1/2 X 2 5/16 in
RotationReversible
Frame MaterialNa
Overall Length
7.20 in
Shaft Diameter0.500 in
