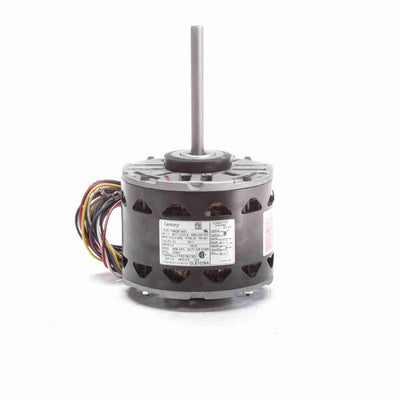

Century OEM Replacement Motor, 1075 RPM, 1/3 HP, 115 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required:
  • 5 Mfd-370 Volts (Not Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 47" Leads with Female Spade Terminal
  • Resilinet Ring Moung, Belly Band Mount
  • HM102-0032 replaces the following brands and item numbers: Lennox #P8-7505 and P8-9450 furnace blower motors, also replaces GE motor #5KCP39HG9174AS

$202.00 USD

Title
Buy Now
SKU:
OLE1036A
ID:
HM102-0032

PRODUCT INFO

Features
Supplied with 2-1/2" diameter resilient rings, automatic reset thermal protector. Capacitor and base not included

SPECIFICATIONS

Nameplate Specifications
UPC786674027863
Output HP1/3 Hp
Frequency60 Hz
Current6.0 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1075 rpm
Phase1
Insulation Class
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Base
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length3.63 in
Shaft Extension5.12 in
RotationClockwise Lead End
Frame MaterialRolled Steel
Overall Length
9.86 in
Shaft Diameter0.500 in
