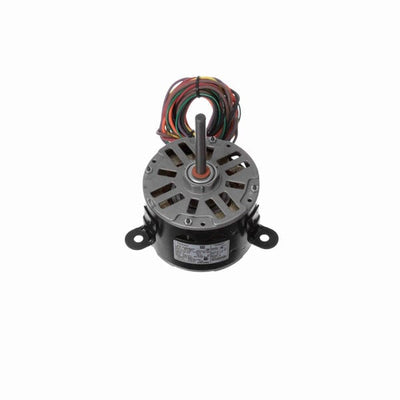

Century OEM Replacement Motor, 1075 RPM, 1/4 HP, 208-230 V, 48 Frame, Semi Enclosed

Availability:
In-Stock
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Shaft End and Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air over
  • Class B Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 53" Leads with Female Spade Terminals
  • Lug Mount

$206.82 USD

Title
Buy Now
SKU:
OCB1026A
ID:
HM102-0003

SPECIFICATIONS

Nameplate Specifications
UPC786674027306
Output HP1/4 Hp
Frequency60 Hz
Current2.2 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureSemi Enclosed
Ambient Temperature60 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingLug
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length3.50 in
Shaft Extension4.2 in
RotationReversible
Frame MaterialRolled Steel
Overall Length8.20 in
Shaft Diameter0.500 in
